Wossner

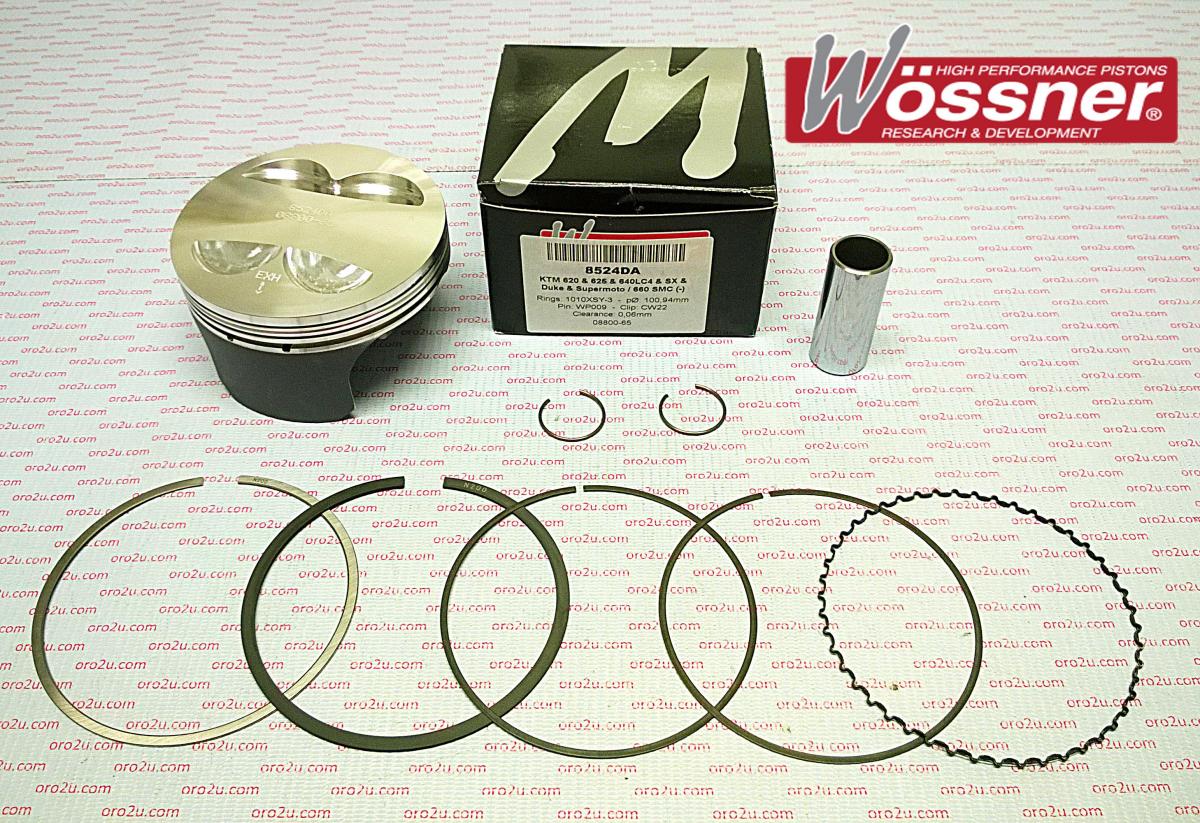

PISTON 94-08 KTM620 640 101 C, FORGED WOSSNER KIT 8524DC

PISTON 94-08 KTM620 640 101 C, FORGED WOSSNER KIT 8524DC

£220.79 GBP
£220.79 GBP
Sale Sold out
Taxes included.
  • Piston Kit: Wossner 8524DC, with a 101.02mm bore (+0.02mm)
  • Applications: KTM 620LC4, KTM 625, KTM 640 LCA/SX/Duke/Supermoto, produced between 1994 and 2007
  • Features:
    • Wossner forged pistons known for superior strength and design
    • Engineered for efficient combustion chamber heat transfer to cylinder walls
    • Elliptical design for a more uniform bearing surface under piston heat expansion, preventing collapse
  • Manufacturing: Made in Germany
  • Additional Parts:
    • Lock: CW22
    • Pin: WP009
    • Ring Set: 1010XSY
  • Specifications:
    • Displacement: 600 cm³
    • Hub Stroke: 76.00mm
    • Clearance: 0.06mm
    • Compression Ratio: OEM specified (11.70:1)
    • Dome Volume: +7.60cm³
    • Compression Height: 26.50mm
    • Theoretical Weight: Not provided
