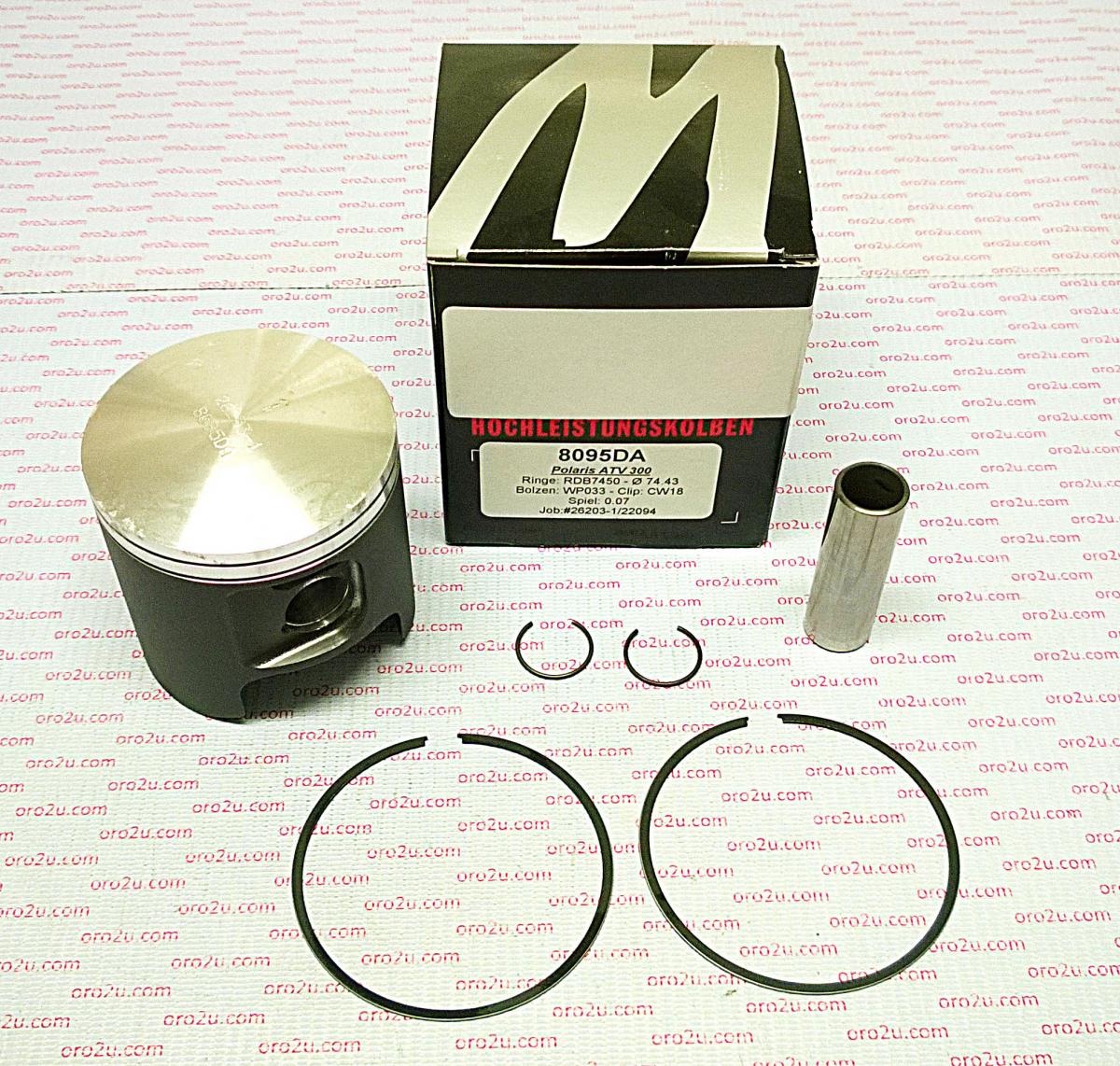

PISTON 94-00 POLARIS 300 74.50, FORGED WOSSNER KIT 8095DA

Piston Kit 74.50mm Bore 74.43 Wossner 8095DA (STD)

POLARIS ATV
300 1994 - 2000,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W164.WO (oro2u.com)
Wossner Piston Polaris ATV300 74.5 mm Bore (PN# 8095DA)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB7450 x 2

Display (cm3) 283
Hub stroke (mm) 65.00
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 33.00
Theorectical weight (G)
