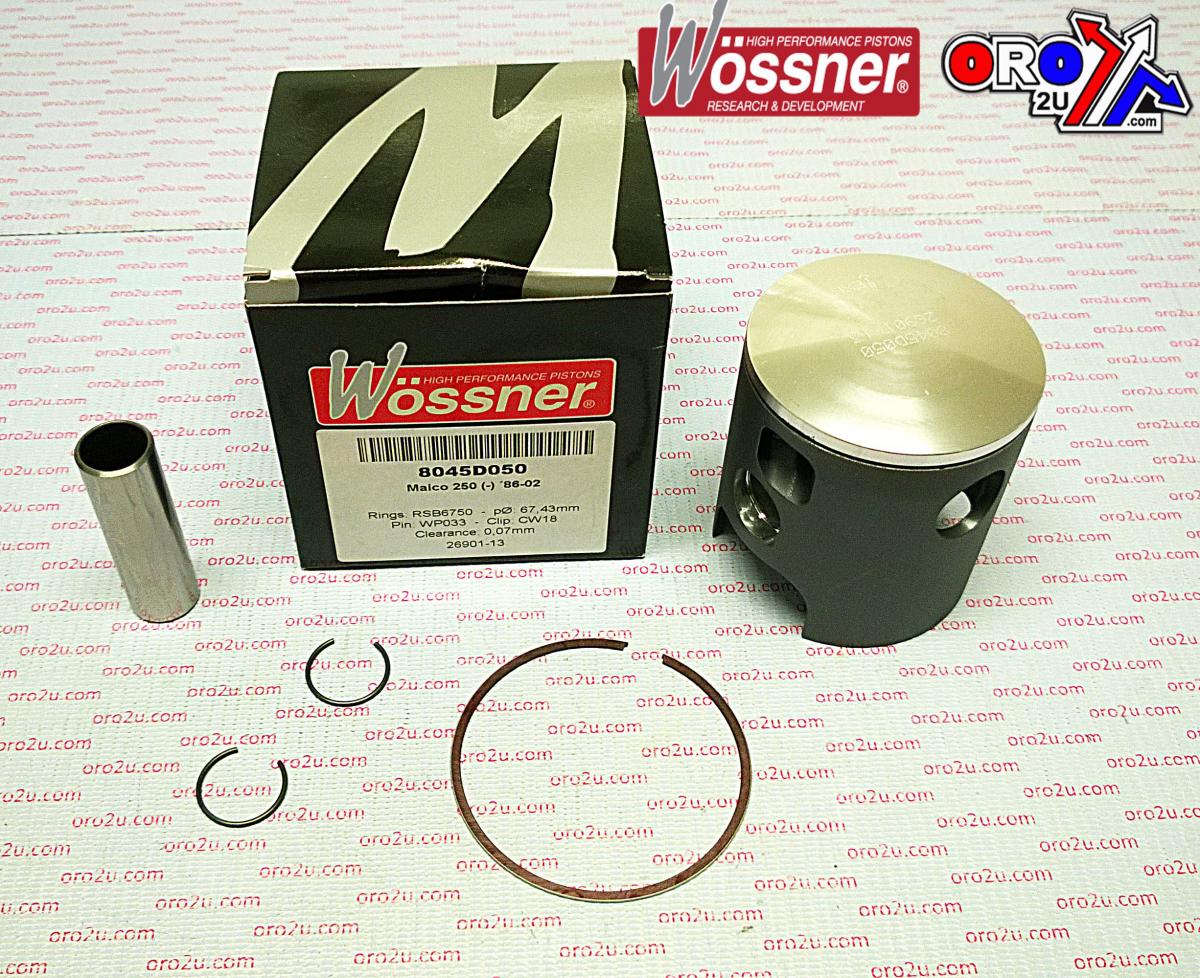

PISTON 86-02 MAICO 250 68.00, FORGED WOSSNER 8045D100 KIT

Piston Kit 68.00mm Bore 67.93 Wossner 8045D100 (+1.00)

MAICO
MC250 1986 -2002,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W141+1.00 (oro2u.com)
Maico 250 MC250 1986-2002,
Wossner 8045D100 Forged Piston 1.00 O/S 68.00mm Bore [67.93]
Lock P/N CW18,
Pin P/N WP033,
Ring Set P/N RSB6800,

Display (cm3) 245
Hub stroke (mm) 70.00
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 35.70
Theorectical weight (G)
