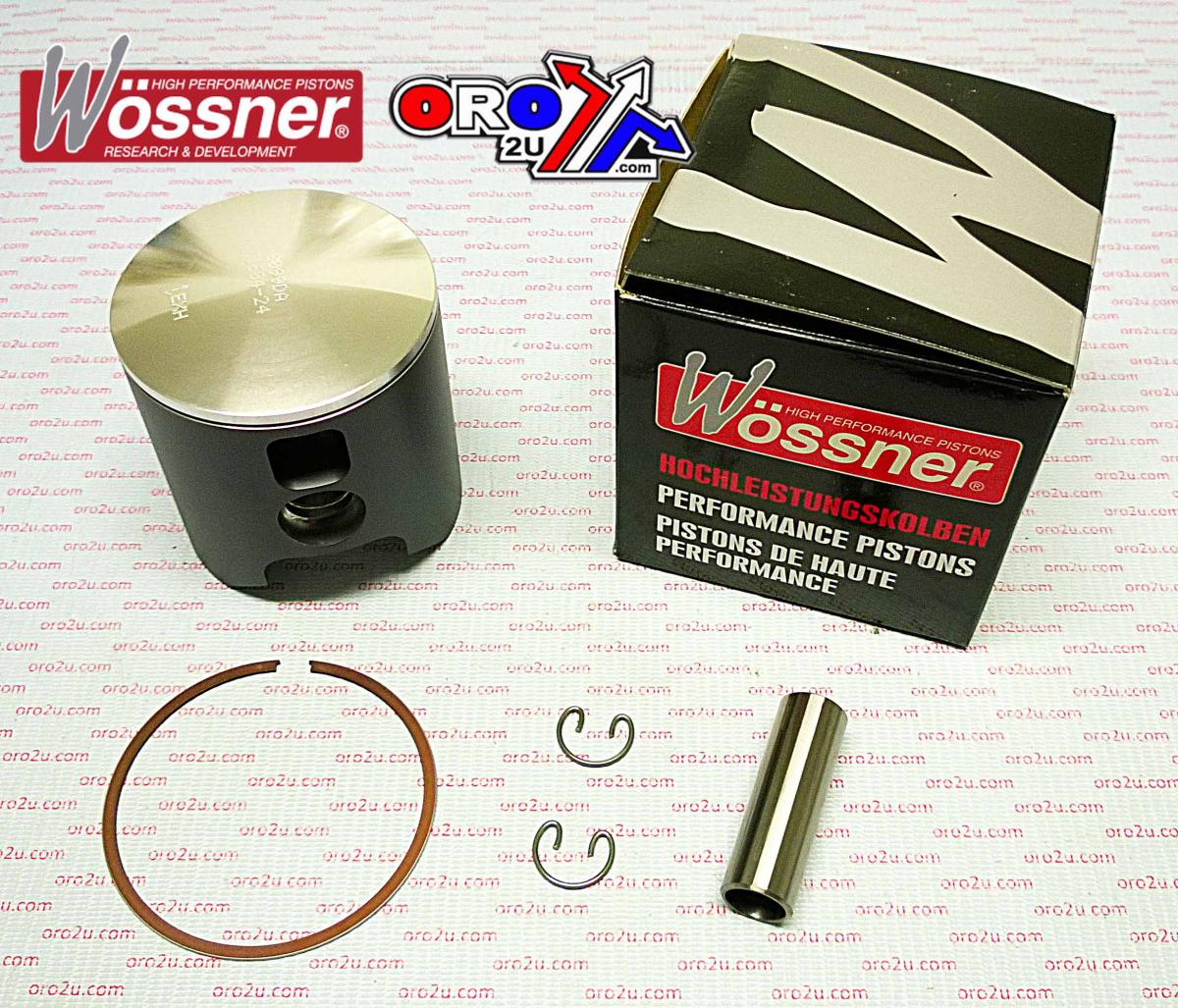

PISTON 73-81 MAICO 440 83.50, FORGED WOSSNER KIT 8099D150

Piston Kit 83.50mm Bore 83.42 Wossner 8099D150 (+1.50)

MAICO
MC / MD 440 1973 - 1981,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W143+1.50 (oro2u.com)
Wossner Piston Maico 440 83.5 mm Bore (PN# 8099D150)
Lock P/N CA18
Pin P/N WP039
Ring Set P/N RSC8350

Display (cm3) 438
Hub stroke (mm) 83.00
Clearance (mm) 0.08
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 41.70
Theorectical weight (G)
