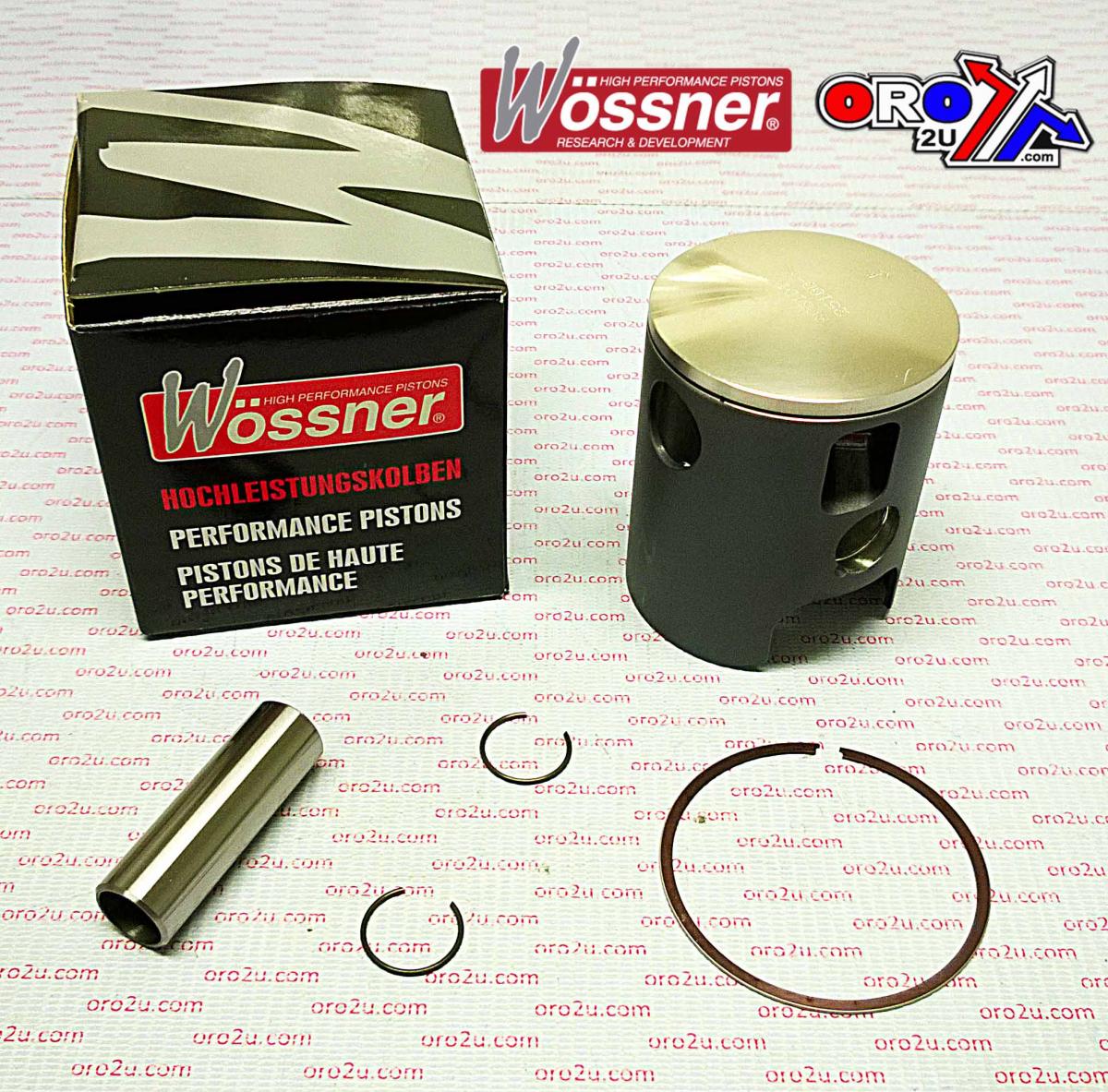

PISTON 73-81 MAICO 250 69.00, FORGED WOSSNER 8031D200 KIT

Piston Kit 69.00mm Bore 68.93 Wossner 8031D200 (+2.00)

MAICO
MC 250 1973 - 1981,
GS250 1973 - 1981,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W140+2.00 (oro2u.com)
Wossner Piston Maico 250 69 mm Bore (PN# 8031D200)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6900

Display (cm3) 245
Hub stroke (mm) 52.30
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 25.00
Theorectical weight (G)
