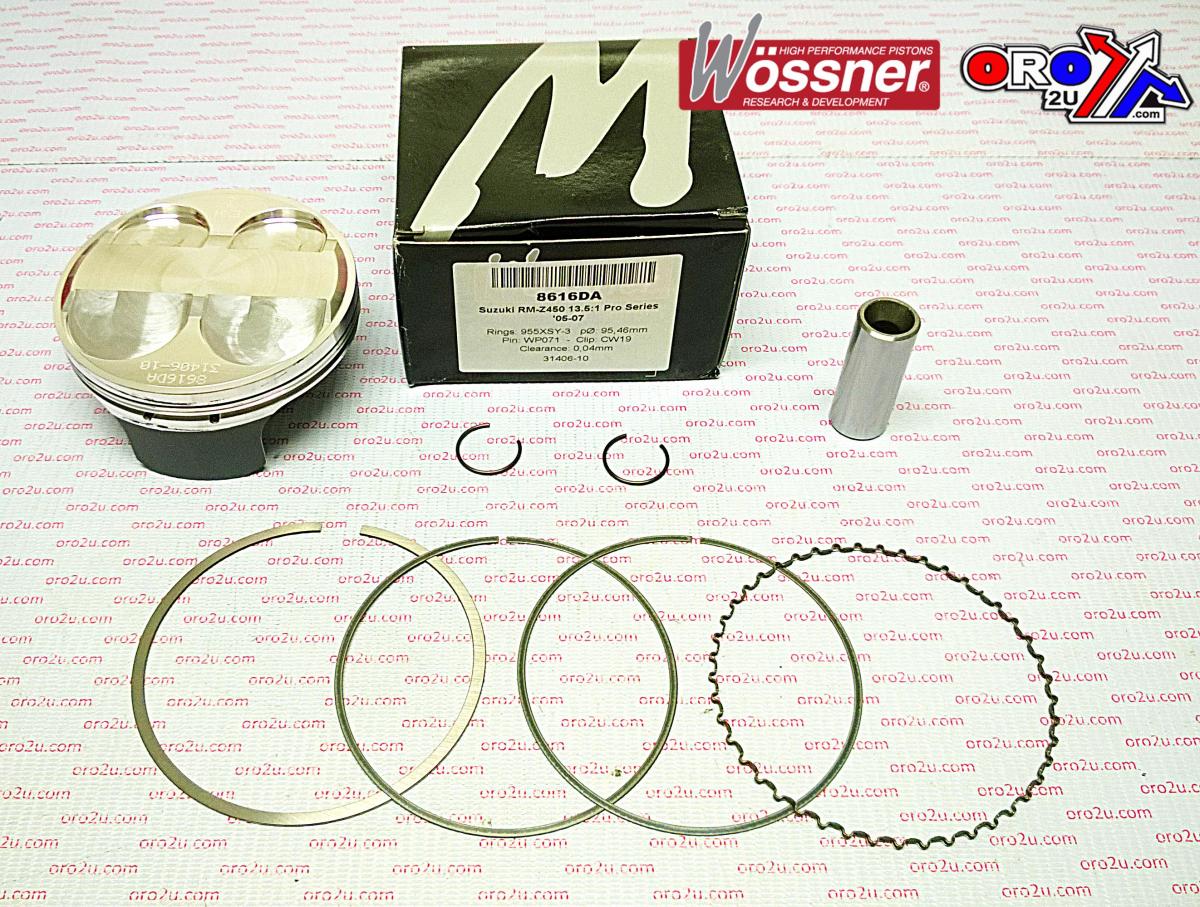

PISTON 05-07 RMZ450 95.50 HC, FORGED WOSSNER KIT 8616DC

Piston kit 96.02mm Bore 95.96 Wossner 8616DC (+0.02)

SUZUKI
RM-Z450 2005 - 2007,
(2-Rings)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W207.C.WO (oro2u.com)
Wossner Piston Suzuki RM-Z450 95.5 mm Bore (PN# 8616DC)
Lock P/N CW19
Pin P/N WP037
Ring Set P/N 955XSY
Rod P/N P4012

Display (cm3) 449
Hub stroke (mm) 95.46
Clearance (mm) 0.04
Wossner compression Ratio: 13.50:1
OEM Compression ratio: 12.00:1
Dome volume (cm3) +1.40
Compression height (mm) 22.30
Theorectical weight (G)
