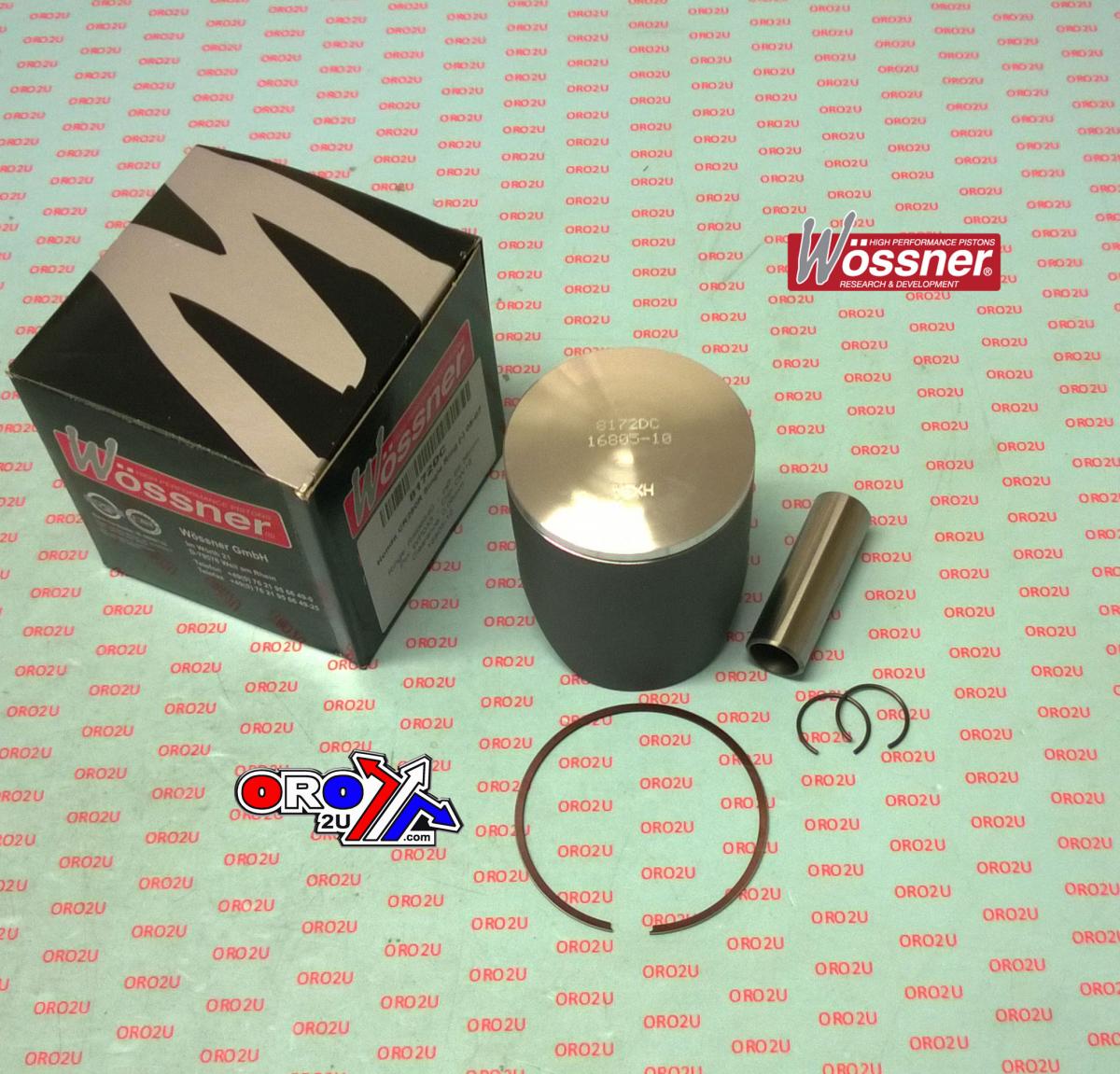

PISTON 05-07 CR250 68.50 1RING, WOSSNER 8172D210 FORGED KIT

Piston Kit 68.44mm Bore 68.44 Wossner 8172D210 (+2.10)

HONDA
CR 250 R 2005 - 2007,
(Single ring)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W134+210.WO (oro2u.com)
Wossner Piston Honda CR250R 68.50 mm Bore (PN# 8172DC)
Gasket P/N D2009
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6850
Rod P/N P2020

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)
