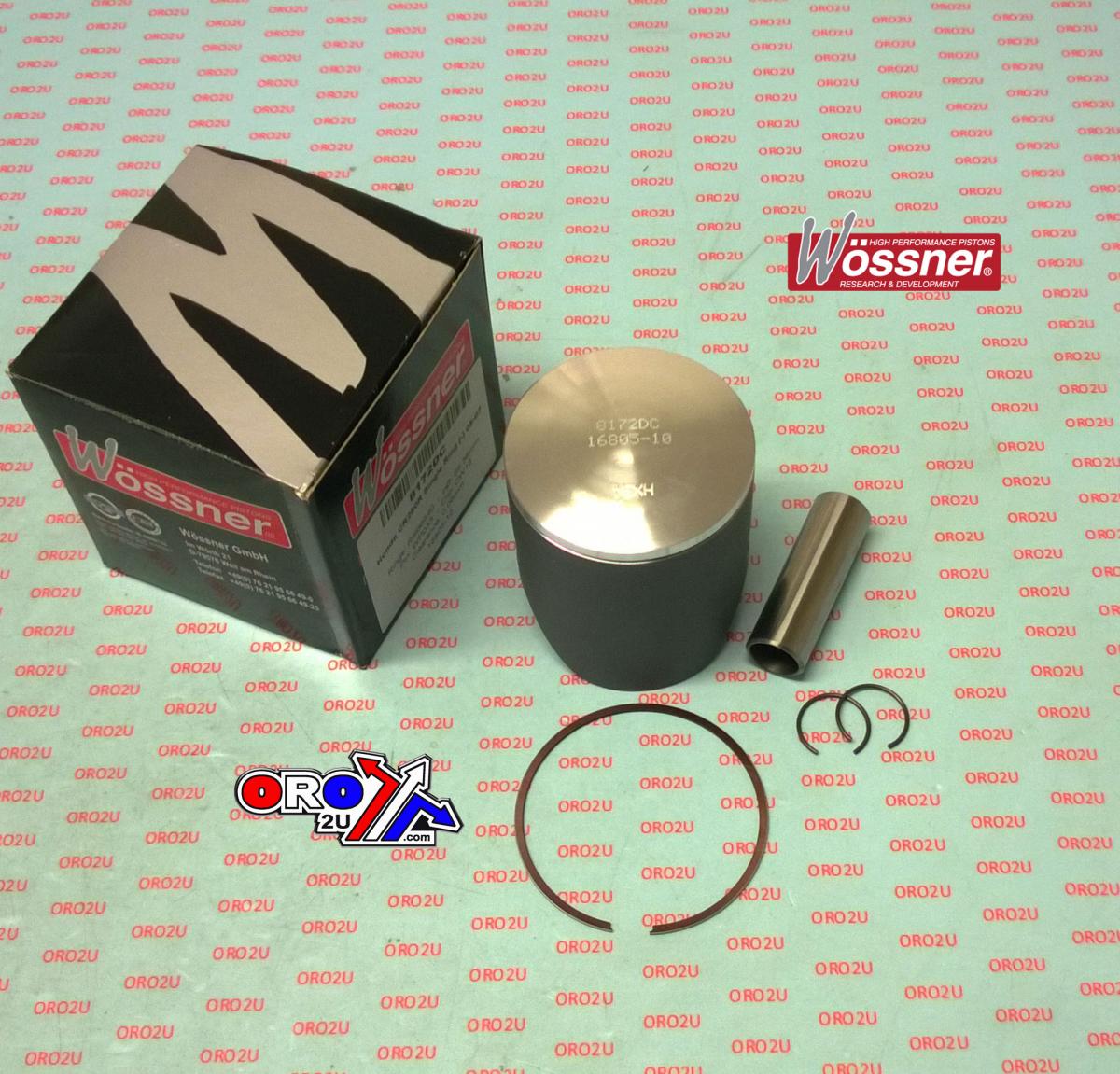

PISTON 05-07 CR250 66.40 1RING, WOSSNER 8172DA FORGED KIT

Piston Kit 66.40mm Bore 66.34 Wossner 8172DA (STD)

HONDA
CR 250 R 2005 - 2007,
(Single ring)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W134+00A.WO (oro2u.com)
Wossner Piston Honda CR250R 66.4 mm Bore (PN# 8172DA)
Gasket P/N D2009
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640
Rod P/N P2020

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)

Cross reference numbers ONLY.
13110-KSK-730, 860M06640
