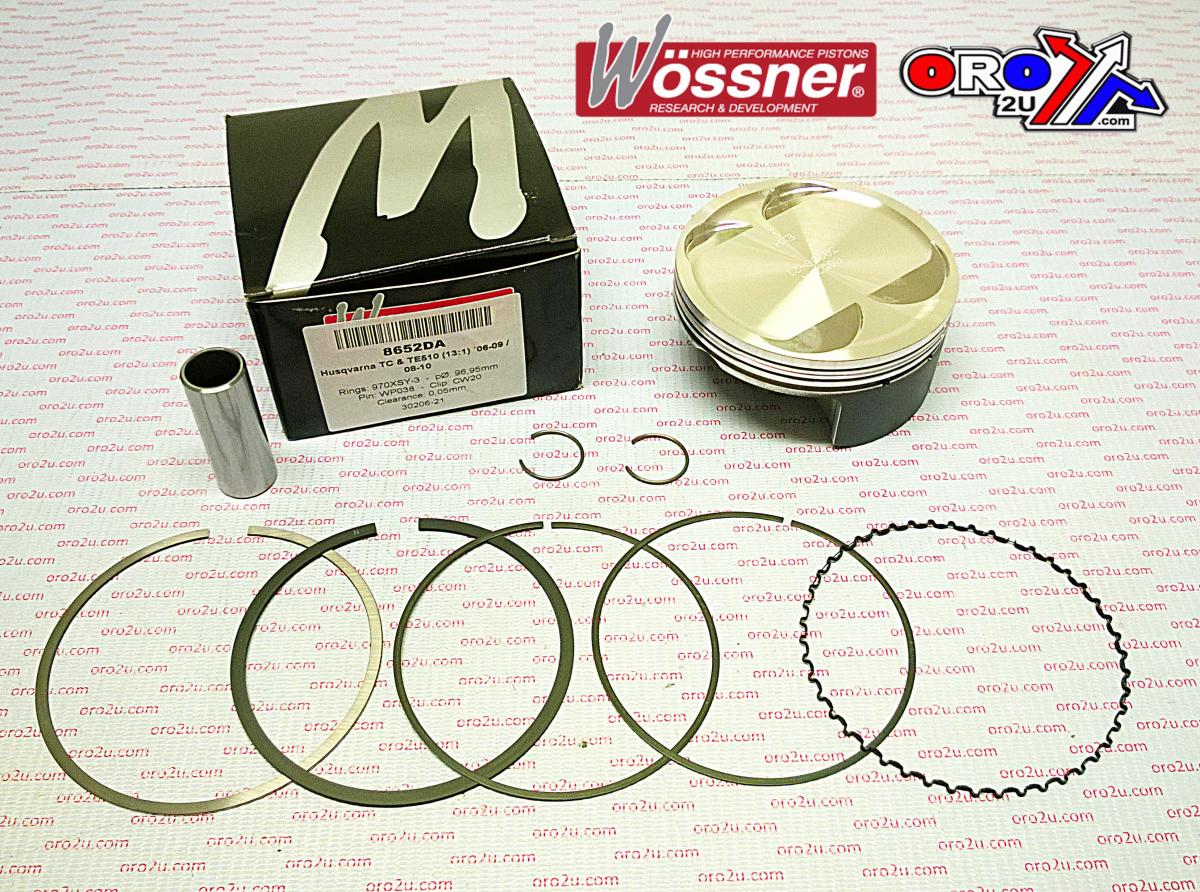

PISTON 04-10 TC TE 510 97.00, HUSQVARNA WOSSNER KIT 8652DA

Wossner forged piston kit designed for Husqvarna TC 510, TE 510, and SMR 510 models with a 97.00mm bore. Engineered for optimal heat transfer and uniform bearing surface distribution, preventing piston collapse. Manufactured in Germany for durability and precision.

Features

• Forged construction for superior strength and durability
• Optimized heat transfer for improved engine performance
• Elliptical design ensures even pressure distribution, reducing localized stress
• Manufactured in Germany for high-quality performance

Specifications

• Bore Size: 97.00mm
• Actual Bore: 96.95mm
• Displacement: 501 cm³
• Stroke: 67.80mm
• Clearance: 0.05mm
• Wossner Compression Ratio: 13.00:1
• OEM Compression Ratio: 12.90:1
• Dome Volume: -9.20 cm³
• Compression Height: 24.80mm
• Lock Part Number: CW20
• Pin Part Number: WP038
• Ring Set Part Number: 970XSY

Cross-Reference OEM Part Numbers

• Wossner Piston Part Number: 8652DA

Vehicle Fitments

• Husqvarna TC 510 (2006-2009)
• Husqvarna TE 510 (2008-2010)
• Husqvarna SMR 510 (2008-2010)
