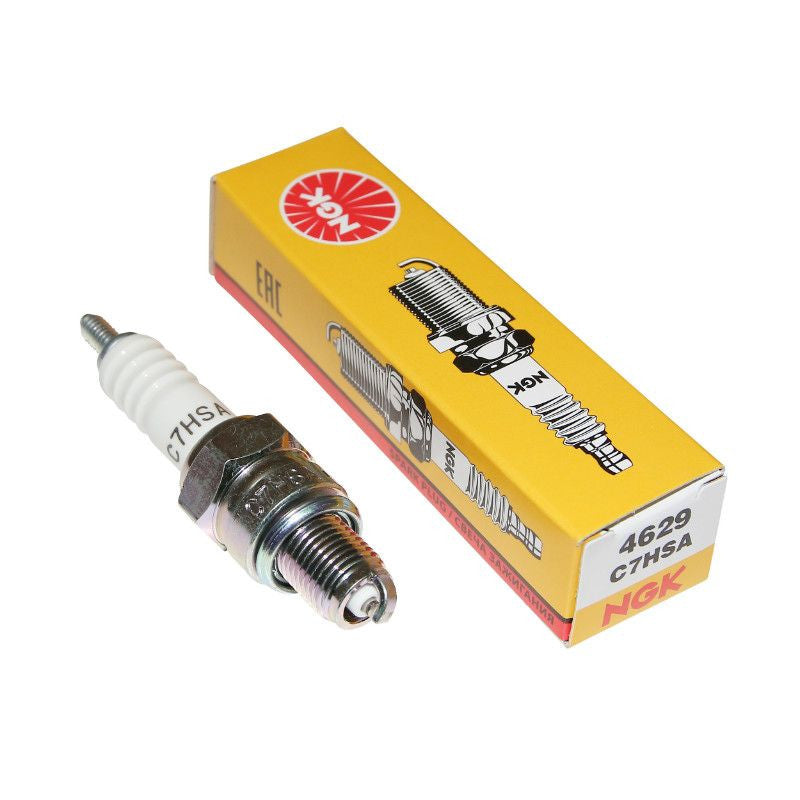

NGK SPARK PLUG C7HSA 4629

NGK Spark Plug - C7HSA

Features:

• Wide heat range achieved using copper wire instead of conventional iron cores.
• Copper dissipates heat efficiently, cooling the electrode and insulator tip.
• High-conduction copper and long nose insulator improve pre-ignition resistance.
• Designed for high-performance engines.
• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties.
• Corrugated ribs prevent flashover.
• Sold individually.

Specifications:

• Heat Range: 7
• Thread Size: 10 mm
• Reach: 12.7 mm (1/2")
• Hex Size: 5/8" (16 mm)
• Seal Type: Gasket Seat
• Type: Non-Resistor
• Electrode Material: Nickel
• Terminal Type: Stud Terminal (Terminal Nut not included)
• Units: Each
• Weight: 0.12 lbs
• Alternate/OEM Part Numbers: 4629, C7HSA
• Part Number: 37-C7HSA (oro2u.com)

Compatible Models:

E-Ton:

• 2001–2003 Yukon 150

Honda:

• ATC70: 1974–1981
• C100 Super Cub 50: 1959–1962
• C102 Super Cub: 1960–1962
• C105T Trail: 1962–1965
• C110 Super Sports Cub 50: 1960–1962
• C70 Passport: 1980–1983
• CA100 Honda: 1962–1970
• CA102 Honda: 1962–1969
• CA105T Trail 55: 1963–1965
• CA110 Sport: 1962–1969
• CL200T Scrambler: 1980–1982
• CL70K Scrambler: 1969–1973
• CM185T Twinstar: 1978–1979
• CM200T Twinstar: 1980–1981
• CT70 Trail/Trail 70H: 1969–1975
• P50 Little Honda: 1967–1968
• QA50K: 1970–1975
• SL70K Motosport: 1971–1973
• XL100S: 1979–1981
• XL70K: 1974–1975
• XL75: 1975–1979
• XL80S: 1980–1981
• XR100: 1981
• XR75K: 1973–1975
• XR80: 1979–1981

Kymco:

• Agility 50 4T: 2016–2017
• Filly 50: 2002–2005
• Mongoose 90: 2004–2008
• Mongoose Jr. 90: 2003

Yamaha:

• YFA1 Breeze: 1989–2002
• YFM100 Moto 4 Champ: 1987–1991
• YFM80 Badger: 1995–2001
• YFM80 Moto 4: 1985–1993

Product Summary:

• Description: NGK 4629 C7HSA Nickel Spark Plug, designed for a wide range of small engines and high-performance applications.
• Details: Standard NGK plug designed for longer life and optimum performance. The nickel construction and copper core ensure excellent heat dissipation, while the alumina silicate ceramic insulator enhances durability. Triple-sealed to prevent leakage, with corrugated ribs to prevent flashover.
