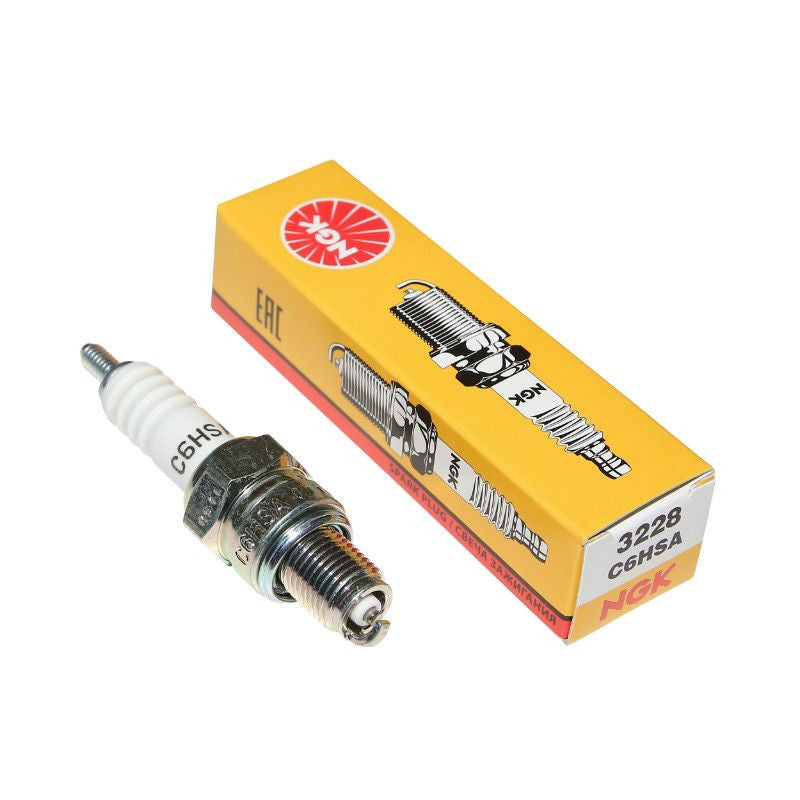

NGK SPARK PLUG C6HSA 3228

NGK Spark Plug - C6HSA

Features:

• Wide heat range achieved using copper wire instead of conventional iron cores.
• Copper dissipates heat quickly, cooling the electrode and insulator tip.
• High-conduction copper and long nose insulator enhance pre-ignition resistance.
• Designed for high-performance engines.
• Sold individually.

Specifications:

• Heat Range: 6
• Thread Size: 10 mm
• Reach: 12.7 mm (1/2")
• Hex Size: 5/8" (16 mm)
• Seal Type: Gasket Seat
• Type: Non-Resistor
• Terminal Type: Stud Terminal Threads (Terminal Nut not included; order part #067606-0051 if needed)
• Gap: .028" (0.7 mm)
• Units: Each
• Weight: 0.12 lbs
• Alternate/OEM Part Numbers: 3228, C6HSA
• Part Number: 37-C6HSA (phoenixmotos.com)

Compatible Models:

Honda:

• C70 Passport: 1980–1983
• C70K: 1970–1973
• C70M: 1970–1973
• PC50 Little Honda: 1969–1970
• Z50 Mini Trail: 1968–1978

Kawasaki:

• KLT110: 1984–1986

Suzuki:

• DR-Z110: 2003–2005

Yamaha:

• XC125 Riva: 1985–2001
• XC125Z Riva: 1986–1991

XV250 Route 66/Virago/V-Star:

• Route 66: 1988–1990
• Virago: 1995–2007
• V-Star: 2008–2018

Product Summary:

• Description: NGK C6HSA Traditional Spark Plug, 10mm Thread Size, 12.7mm (1/2") Reach, Gasket Seat, and Non-Resistor Type.
• Details: Designed for extended service life and optimum performance. Corrugated ribs prevent flashover, and the pure alumina silicate ceramic insulator provides superior strength and heat transfer. Copper core and triple-sealed construction enhance heat dissipation and reliability.
