LOWER SHOCK BEARING KIT FACTORY LINKS LSA-H-006

The Factory Links LSA-H-006 Lower Shock Bearing Kit is a rear lower shock absorber rebuild kit for selected Honda, HM, Honda RedMoto and Suzuki off-road motorcycles. It is used to renew the lower shock mounting assembly, helping restore correct suspension movement, reduce play and maintain proper alignment between the shock absorber and linkage.

Features

• Complete kit for servicing the lower rear shock bearing assembly
• Designed for off-road suspension pivot applications
• Supports smooth rear suspension articulation
• Helps reduce movement caused by worn lower shock bearings
• Includes the required bearing, pin, collars and dust seals for a lower shock rebuild
• Suitable for motocross, enduro and off-road use

Specifications

• Kit type: lower shock absorber bearing kit
• Mounting position: rear lower shock
• Needle bearing design: full-complement drawn cup
• Pin material: SAE52100 high-grade bearing steel
• Pin hardness: above HRC60
• Collar material: SPCC steel
• Collar hardness: HRC48
• Collar finish: zinc-plated
• Dust seal material: Nitrile Butadiene Rubber

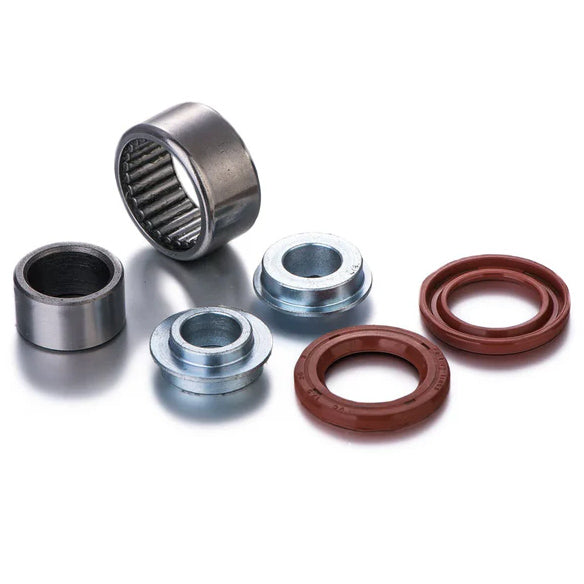

• Kit contents: 2 dust seals, 1 needle bearing, 1 plain pin/collar and 2 special pins/collars

Cross-Reference OEM Part Numbers

• LSA-H-006
• 1313-0238
• 13130238
• All Balls 29-5008
• UPC 3000000014295

Vehicle Fitments

• HM CRE 125, 2002-2007, rear
• HM CRE 250, 2003-2007, rear
• HM CRE/F 250 R, 2004-2015, rear
• HM CRE/F 250 X, 2004-2015, rear
• HM CRE/F 450 R, 2002-2015, rear
• HM CRE/F 450 X, 2005-2015, rear
• HM CRE/M 450 R, 2002-2015, rear
• HM CRM 125, 2002-2007, rear
• Honda CR 125 R, 2005-2007, rear
• Honda CR 250 R, 2005-2007, rear
• Honda CRF 250 R, 2006-2026, rear
• Honda CRF 250 RWE, 2025-2026, rear
• Honda CRF 250 RX, 2019-2024, rear
• Honda CRF 250 X, 2006-2018, rear
• Honda CRF 450 L, 2019-2020, rear
• Honda CRF 450 R, 2005-2026, rear
• Honda CRF 450 RL, 2021, rear
• Honda CRF 450 RWE, 2019-2026, rear
• Honda CRF 450 RX, 2017-2026, rear
• Honda CRF 450 X, 2005-2026, rear
• Honda CRF 450R 50th Anniversary, 2023, rear
• Honda XR 650 R, 2000-2007, rear
• Honda XR 650 R, 2000-2007, low
• Honda RedMoto CRF 250 RX, 2023-2026, rear
• Honda RedMoto CRF 300 RX, 2023-2026, rear
• Honda RedMoto CRF 400 RX, 2023-2026, rear
• Honda RedMoto CRF 450 RX, 2023-2026, rear
• Honda RedMoto CRF 450 RX ESP, 2023-2026, rear
• Honda RedMoto CRF 450 RX SM, 2023-2026, rear
