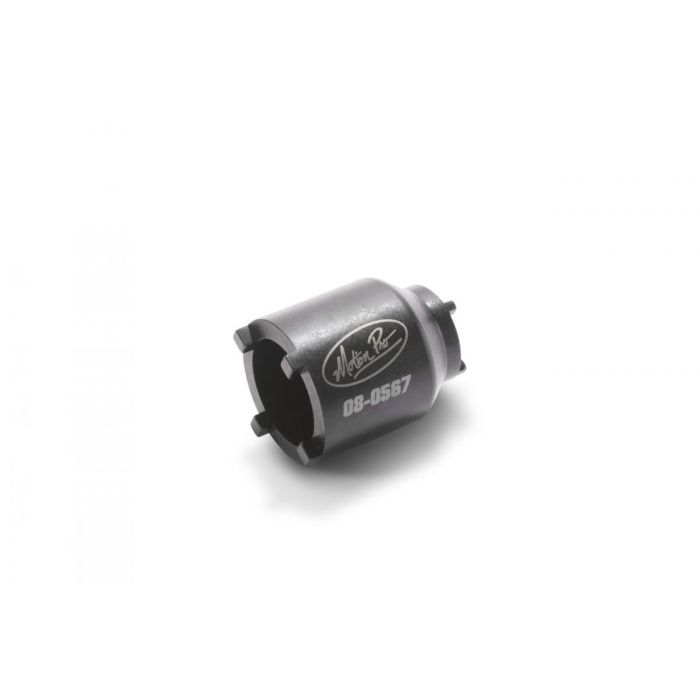

LOCK NUT SOCKET SPANNER 4 PIN 50mm 33.8mm 1/2” DRIVE MOTION PRO 08-0567 09940-14970

The Motion Pro Spanner Nut Socket is designed for the removal and installation of spanner (castle) lock nuts, serving as an equivalent to Suzuki tool 09940-14970.

Motion Pro

Features:

• Dual-end socket for versatility
• Large end dimensions: 50mm OD x 36.6mm ID x 5.6mm pin width (4 pins)
• Small end dimensions: 33.8mm OD x 25.6mm ID x 3.5mm pin width (4 pins)
• Constructed from premium high-carbon steel
• Heat-treated for enhanced strength and durability
• Durable hot black oxide finish
• 1/2-inch drive compatibility
• Laser-etched with Motion Pro logo and part number

Specifications:

• Large end: 50mm outer diameter, 36.6mm inner diameter, 5.6mm pin width
• Small end: 33.8mm outer diameter, 25.6mm inner diameter, 3.5mm pin width
• Drive size: 1/2 inch

Cross-Reference OEM Part Numbers:

• Suzuki tool 09940-14970
