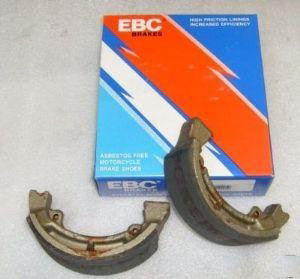

Honda CR250 1978 1979 EBC Front Brake Shoes

This brake shoe set from EBC Brakes provides consistent braking performance and control for road use. The Regular Street (plain) design and 100% asbestos-free bonded brake lining construction balance bite, modulation and durability under heat. Supplied as a brake shoe and spring set, it is suitable for selected motorcycle drum brake systems in front or rear applications (application dependent) and has no stated approval or compliance status where applicable.

Features

• Radius ground and edge trimmed shoe profile for accurate drum contact
• Lead-in and lead-out chamfers at lining ends to promote smooth engagement
• Plain lining profile intended for standard road braking

Specifications

• Product type: Motorcycle brake shoe set
• Product range/series: Regular Street (plain)
• Compound / material: 100% asbestos-free bonded brake linings
• Construction / design: High-pressure die-cast aluminium shoe platforms

Dimensions

• Disc/rotor diameter: 140 mm
• Weight: 0.3 kg

Cross Reference Numbers

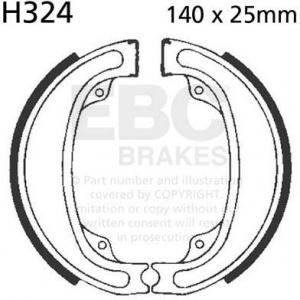

• H324

Vehicle Fitment
HONDA (Front Left)

• CR 125 R Elsinore (1979-1981)
• CR 250 RZ|RA (1978-1980)
• XR 500 S (1979-1980)
