Wiseco Pro-Lite Top End Kit 68.50 mm for Yamaha YZ250 1988–1991 PK1696
Wiseco Pro-Lite Top End Kit 68.50 mm for Yamaha YZ250 1988–1991 PK1696
Regular price
£207.93 GBP
Regular price
Sale price
£207.93 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Wiseco PK1696 is a top end kit for a 68.50 mm bore.
Wiseco catalogue applications
| Make | Model | Years |
|---|---|---|
| Yamaha | YZ250 | 1988–1991 |
| Yamaha | WR250 | 1991 |
Specifications
- Manufacturer part number: PK1696
- Product Series: 2 Stroke Pro-Lite Series
- Bore Diameter: 68.50 MM
- Piston Diameter: 68.45 MM
- Piston Oversize: 0.50 MM
- Skirt Coating: No

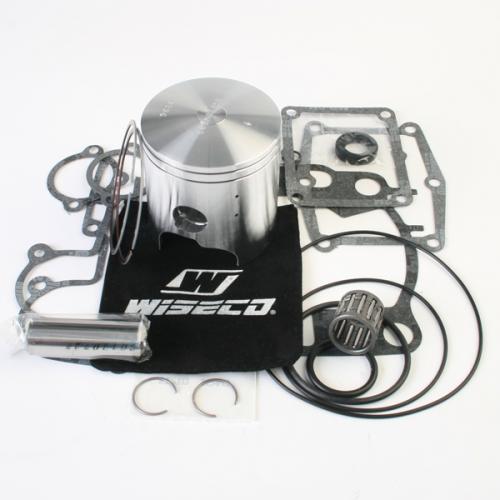

Included components
Piston #605M06850, Ring Set #2697CD, Piston pin #S508, Circlip #CW18, Bearing #B1014, Gasket #W5168.
Cylinder preparation
Wiseco specifies: Bore/Replate/Sleeve.
Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
Application notes
- Yamaha YZ250 1988–1991, Yamaha WR250 1991: At bores of 69 mm or above, modify the power valve before fitting.
- Yamaha YZ250 1988–1991, Yamaha WR250 1991: 1991 model is Nikasil bore.
