Wiseco Pro-Lite Top End Kit 72.00 mm for Suzuki LT250 R Quadracer 1985–1986 PK1533

Wiseco PK1533 is a top end kit for a 72.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: PK1533
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 72.00 MM
• Piston Diameter: 71.92 MM
• Piston Oversize: 2.00 MM
• Skirt Coating: No

Included components

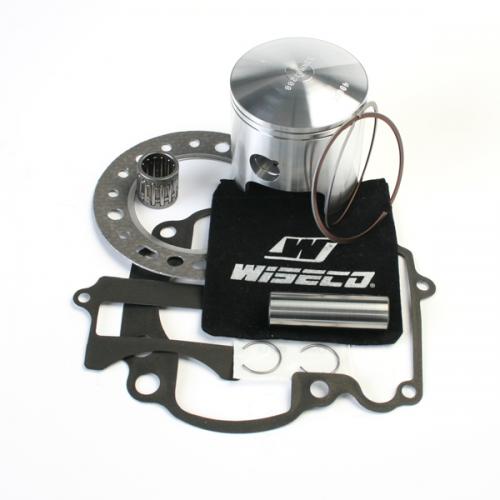

Piston #534M07200, Ring Set #2835CD, Piston pin #S513, Circlip #CW18, Bearing #B1002, Gasket #W5065.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Application notes

• Suzuki LT250 R Quadracer 1985–1986: Retain the original thrust washers.
