Wiseco Pro-Lite Top End Kit 54.00 mm for KTM 125 SX 2002–2006 PK1512

Wiseco PK1512 is a top end kit for a 54.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: PK1512
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 54.00 MM
• Piston Diameter: 53.95 MM
• Piston Oversize: STD
• Skirt Coating: Yes

Included components

Piston #786M05400, Ring Set #2126CS, Piston pin #S467, Circlip #CW15, Bearing #B1013, Gasket #W5972.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

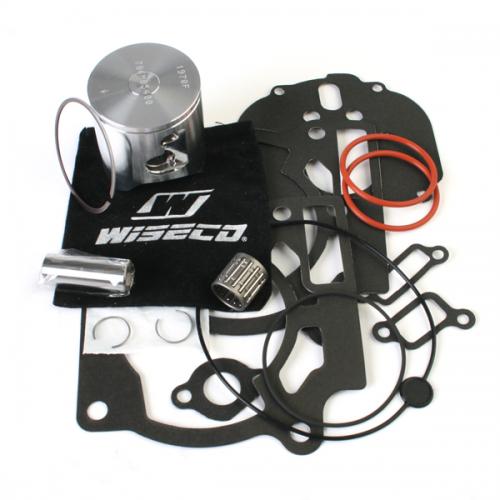

Manufacturer photograph for this reference. Packaging presentation may change.
