Wiseco Forged Top End Kit 95.50 mm 13:1 CR for Suzuki RM-Z450 2005–2007 PK1386

Wiseco PK1386 is a top end kit for a 95.50 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: PK1386
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 95.50 MM
• Piston Diameter: 95.44 MM
• Piston Oversize: STD
• Piston Material: 2618
• Skirt Coating: Yes
• Compression Ratio Actual: 13:1

Included components

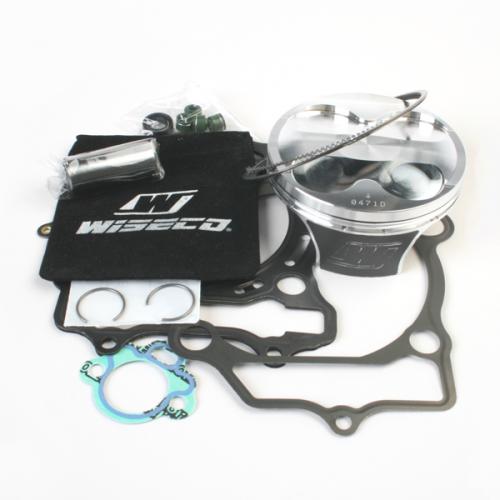

Piston #4870M09550, Ring Set #9550ZV, Piston pin #S682, Circlip #CW19, Gasket #W6416.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
