Wiseco Forged Top End Kit 48.00 mm 9.7:1 CR for Honda XR80 1979–1991 PK1277

Wiseco PK1277 is a top end kit for a 48.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: PK1277
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 48.00 MM
• Piston Diameter: 47.97 MM
• Piston Oversize: 0.50 MM
• Piston Material: 4032
• Skirt Coating: No
• Compression Ratio Actual: 9.7:1

Included components

Piston #4665M04800, Ring Set #1890XE, Piston pin #S592, Circlip #CW13, Gasket #W5732.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

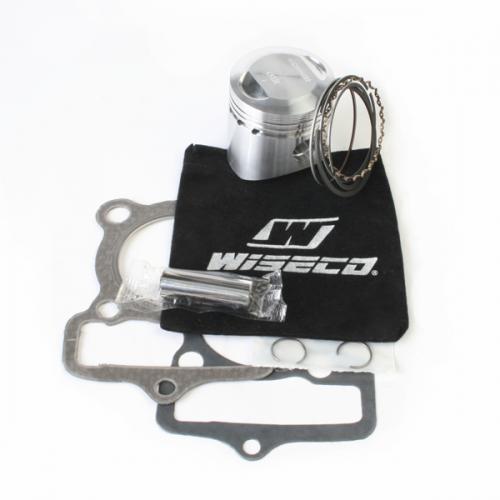

Manufacturer photograph for this reference. Packaging presentation may change.
