Wiseco Forged Top End Kit 55.00 mm 9.4:1 CR for Honda XR100 1981–1984 PK1276

Wiseco PK1276 is a top end kit for a 55.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: PK1276
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 55.00 MM
• Piston Diameter: 54.97 MM
• Piston Oversize: 2.00 MM
• Piston Material: 4032
• Skirt Coating: No
• Compression Ratio Actual: 9.4:1

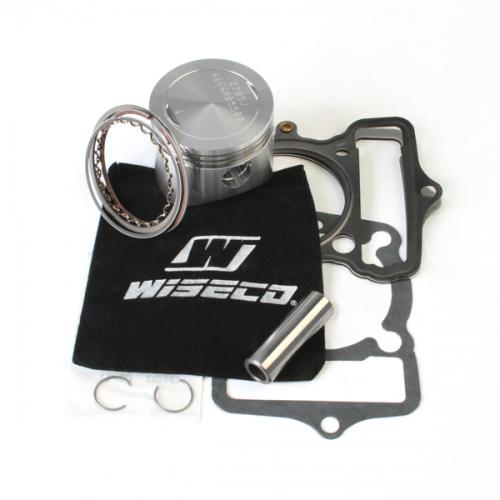

Included components

Piston #4666M05500, Ring Set #2165XE, Piston pin #S593, Circlip #CW14, Gasket #W5733.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
