Wiseco Pro-Lite Top End Kit 48.00 mm for Yamaha YZ85 2002–2024 PK1203

Wiseco PK1203 is a top end kit for a 48.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: PK1203
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 48.00 MM
• Piston Diameter: 47.95 MM
• Piston Oversize: 0.50 MM
• Skirt Coating: No

Included components

Piston #805M04800, Ring Set #1890CS, Piston pin #S517, Circlip #CW14, Bearing #B1012, Gasket #W5983.

Cylinder preparation

Wiseco specifies: Bore / Replate.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

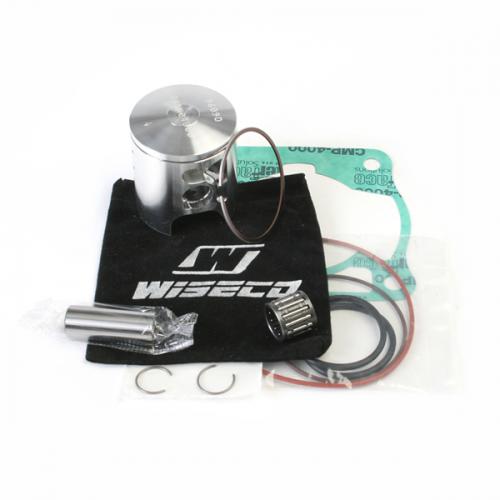

Manufacturer photograph for this reference. Packaging presentation may change.
