Wiseco Pro-Lite Top End Kit 55.00 mm for Honda CR125 R 1992–1997 PK1166

Wiseco PK1166 is a top end kit for a 55.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: PK1166
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 55.00 MM
• Piston Diameter: 54.95 MM
• Piston Oversize: 1.00 MM
• Skirt Coating: No

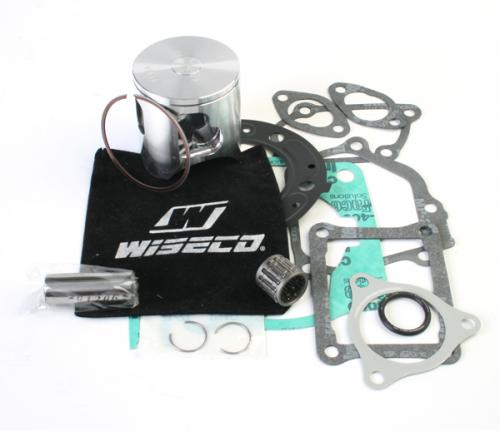

Included components

Piston #676M05500, Ring Set #2165CS, Piston pin #S467, Circlip #CW15, Bearing #B1001, Gasket #W5318.

Cylinder preparation

Wiseco specifies: Bore / Replate.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
