Wiseco Forged Top End Kit 65.50 mm 10.25:1 CR for Honda XR/XL185 + .100 Big Bore 1986–1991 PK1120

Wiseco Forged Top End Kit 65.50 mm 10.25:1 CR for Honda XR/XL185 + .100 Big Bore 1986–1991 PK1120

£160.78 GBP
£160.78 GBP
Sale Sold out
Taxes included.

Wiseco PK1120 is a top end kit for a 65.50 mm bore.

Wiseco catalogue applications

Make Model Years
Honda XR/XL185 + .100 Big Bore 1986–1991
Honda XR200 R 1986–1991

Specifications

  • Manufacturer part number: PK1120
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 65.50 MM
  • Piston Diameter: 65.45 MM
  • Piston Oversize: STD
  • Piston Material: 2618
  • Compression Ratio Actual: 10.25:1

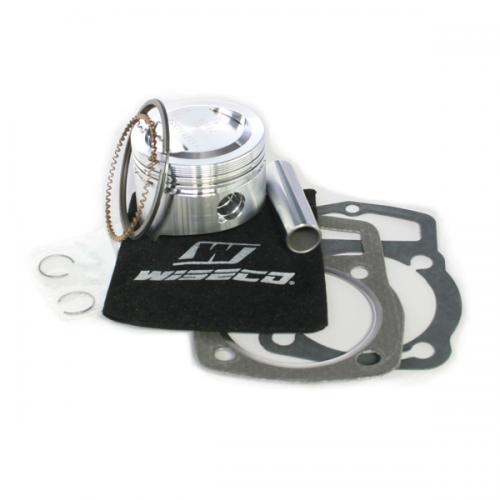

Included components

Piston #4156M06550, Ring Set #2579XC, Piston pin #S522, Circlip #CW15, Gasket #W5660.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Manufacturer photograph for this reference. Packaging presentation may change.
