Wiseco Forged Top End Kit 96.00 mm 11.4:1 CR for Yamaha YFZ450 2004–2005 PK1072

Wiseco PK1072 is a top end kit for a 96.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: PK1072
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 96.00 MM
• Piston Diameter: 95.94 MM
• Piston Oversize: 1.00 MM
• Piston Material: 2618
• Skirt Coating: Yes
• Compression Ratio Actual: 11.4:1

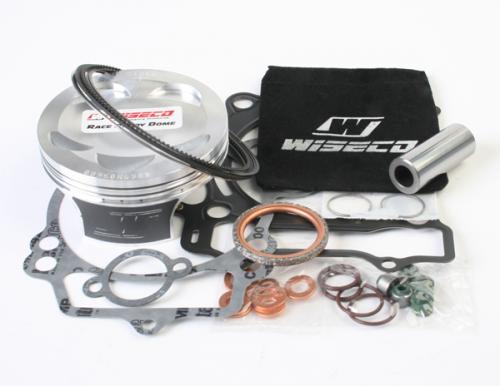

Included components

Piston #4865M09600, Ring Set #9600XS, Piston pin #S641, Circlip #CW20, Gasket #W6248.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
