Wiseco Forged Top End Kit 77.00 mm 8.6:1 CR for Kawasaki KLF300 Bayou 1986–2003 PK1052

Wiseco Forged Top End Kit 77.00 mm 8.6:1 CR for Kawasaki KLF300 Bayou 1986–2003 PK1052

£190.92 GBP
£190.92 GBP
Sale Sold out
Taxes included.

Wiseco PK1052 is a top end kit for a 77.00 mm bore.

Wiseco catalogue applications

Make Model Years
Kawasaki KLF300 Bayou 1986–2003
Kawasaki KLF300 Bayou4x4 1986–2003
Kawasaki KEF300 Lakota Sport 1995–2003
Kawasaki KVF300 Prairie 1999–2003
Kawasaki KVF300 Prairie4x4 1999–2003

Specifications

  • Manufacturer part number: PK1052
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 77.00 MM
  • Piston Diameter: 76.95 MM
  • Piston Oversize: 1.00 MM
  • Piston Material: 2618
  • Skirt Coating: No
  • Compression Ratio Actual: 8.6:1

Included components

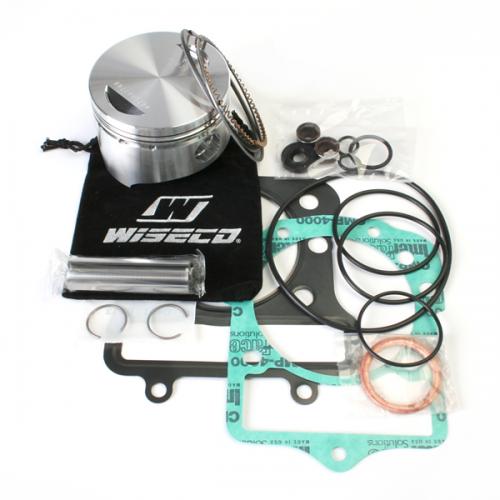

Piston #4671M07700, Ring Set #2992XC, Piston pin #S278, Circlip #CW18, Gasket #W5740.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
