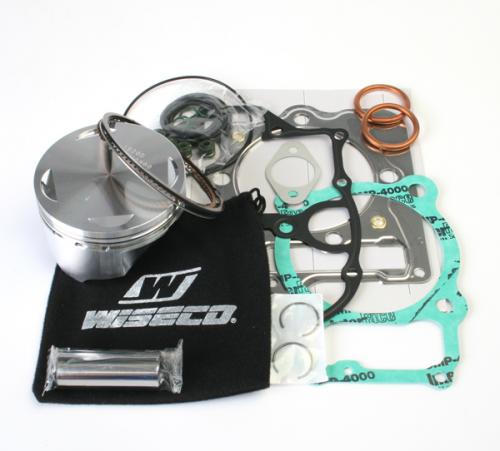

Wiseco Forged Top End Kit 89.00 mm 11:1 CR for Honda XR400 R 1996–2004 PK1041

Wiseco PK1041 is a top end kit for a 89.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: PK1041
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 89.00 MM
• Piston Diameter: 88.95 MM
• Piston Oversize: 4.00 MM
• Piston Material: 2618
• Skirt Coating: No
• Compression Ratio Actual: 11:1

Included components

Piston #4667M08900, Ring Set #3504XC, Piston pin #S553, Circlip #CW20, Gasket #W5942.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
