Wiseco Forged Top End Kit 85.00 mm 11:1 CR for Honda XR400 R 1996–2004 PK1036

Wiseco Forged Top End Kit 85.00 mm 11:1 CR for Honda XR400 R 1996–2004 PK1036

£252.14 GBP
£252.14 GBP
Sale Sold out
Taxes included.

Wiseco PK1036 is a top end kit for a 85.00 mm bore.

Wiseco catalogue applications

Make Model Years
Honda XR400 R 1996–2004
Honda TRX400 EX 1999–2008
Honda TRX400 X 2009–2014

Specifications

  • Manufacturer part number: PK1036
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 85.00 MM
  • Piston Diameter: 84.95 MM
  • Piston Oversize: STD
  • Piston Material: 2618
  • Skirt Coating: No
  • Compression Ratio Actual: 11:1

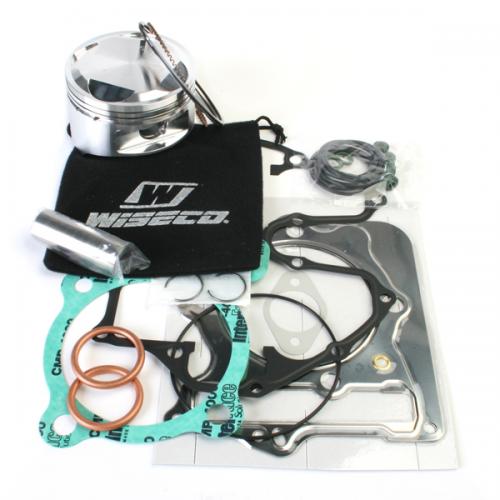

Included components

Piston #4628M08500, Ring Set #3347XC, Piston pin #S520, Circlip #CW20, Gasket #W5514.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
