Wiseco Forged Top End Kit 85.50 mm 10:1 CR for Honda XR400 R 1996–2004 PK1032

Wiseco Forged Top End Kit 85.50 mm 10:1 CR for Honda XR400 R 1996–2004 PK1032

£233.25 GBP
£233.25 GBP
Sale Sold out
Taxes included.

Wiseco PK1032 is a top end kit for a 85.50 mm bore.

Wiseco catalogue applications

Make Model Years
Honda XR400 R 1996–2004
Honda TRX400 EX 1999–2008
Honda TRX400 X 2009–2014

Specifications

  • Manufacturer part number: PK1032
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 85.50 MM
  • Piston Diameter: 85.45 MM
  • Piston Oversize: 0.50 MM
  • Piston Material: 2618
  • Skirt Coating: No
  • Compression Ratio Actual: 10:1

Included components

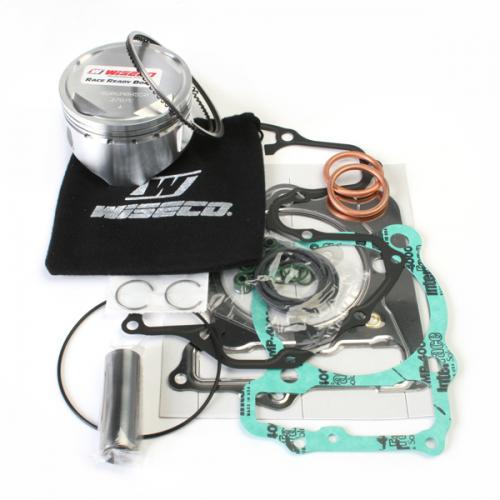

Piston #4606M08550, Ring Set #8550XX, Piston pin #S520, Circlip #CW20, Gasket #W5514.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
