Wiseco Forged Top End Kit 66.00 mm 10.25:1 CR for Honda ATC185 1980–1983 PK1002

Wiseco Forged Top End Kit 66.00 mm 10.25:1 CR for Honda ATC185 1980–1983 PK1002

£179.79 GBP
£179.79 GBP
Sale Sold out
Taxes included.

Wiseco PK1002 is a top end kit for a 66.00 mm bore.

Wiseco catalogue applications

Make Model Years
Honda ATC185 1980–1983
Honda ATC200 E, X, M, Big Red 1981–1985
Honda ATC200 S 1981–1986
Honda TRX200 1981–1985

Specifications

  • Manufacturer part number: PK1002
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 66.00 MM
  • Piston Diameter: 65.95 MM
  • Piston Oversize: 1.00 MM
  • Piston Material: 2618
  • Skirt Coating: No
  • Compression Ratio Actual: 10.25:1

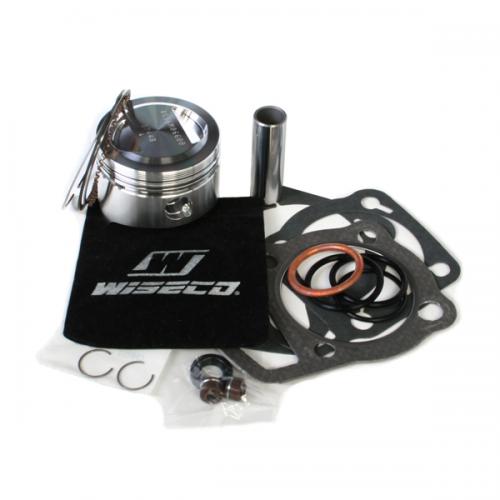

Included components

Piston #4156M06600, Ring Set #2598XC, Piston pin #S522, Circlip #CW15, Gasket #W5056.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
