Wiseco Forged Piston Kit 72.00 mm for Husqvarna CR250 1998–2013 878M07200

Wiseco 878M07200 is a piston kit for a 72.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 878M07200
• Product Series: 2 Stroke Forged Series
• Bore Diameter: 72.00 MM
• Piston Diameter: 71.93 MM
• Piston Oversize: 5.60 MM
• Piston Material: 4032
• Skirt Coating: Yes

Included components

Ring Set #2835CD, Piston pin #S508, Circlip #CW18.

Cylinder preparation

Wiseco specifies: Bore / Replate; Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Application notes

• Husqvarna CR250 1998–2013, Husqvarna TE300 2014–2016: Cylinder, cylinder head, and powervalve.
• Husqvarna CR250 1998–2013, Husqvarna TE300 2014–2016: modifications required.
• Kawasaki KX250 1993–2008: Cylinder, cylinder.
• Kawasaki KX250 1993–2008: head, and powervalve modifications required.
• KTM 250 SX 2003–2016: Cylinder, cylinder.
• KTM 250 SX 2003–2016: head, and powervalve modifications required.
• Suzuki RM250 2003–2012: Cylinder, cylinder.
• Suzuki RM250 2003–2012: head, and powervalve modifications required.
• Yamaha YZ250 1999–2024: Cylinder, cylinder.
• Yamaha YZ250 1999–2024: head, and powervalve modifications required.

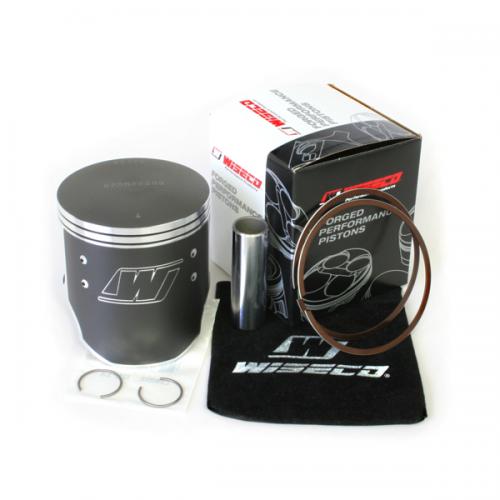

Manufacturer photograph for this reference. Packaging presentation may change.
