Wiseco Forged Piston Kit 43.00 mm for Kawasaki KDX50 2003–2006 826M04300

Wiseco Forged Piston Kit 43.00 mm for Kawasaki KDX50 2003–2006 826M04300

Regular price £89.42 GBP
Regular price Sale price £89.42 GBP
Sale Sold out
Taxes included.

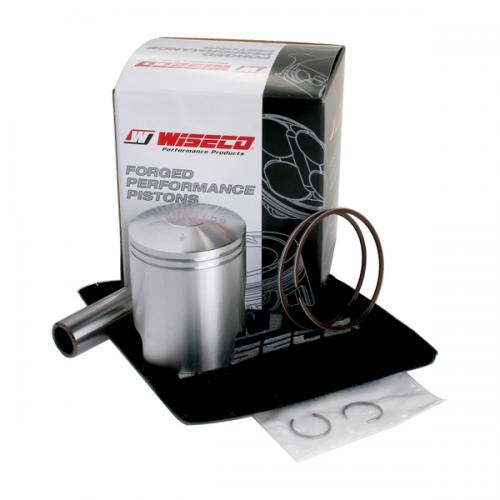

Wiseco 826M04300 is a piston kit for a 43.00 mm bore.

Wiseco catalogue applications

Make Model Years
Kawasaki KDX50 2003–2006
Suzuki JR50 1978–2006
Kawasaki KFX50 2003–2006
Suzuki LT50 1984–2006

Specifications

  • Manufacturer part number: 826M04300
  • Product Series: 2 Stroke Forged Series
  • Bore Diameter: 43.00 MM
  • Piston Diameter: 42.95 MM
  • Piston Oversize: 2.00 MM
  • Piston Material: 4032
  • Skirt Coating: No

Included components

Ring Set #1693CD, Piston pin #S563, Circlip #CW12.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Manufacturer photograph for this reference. Packaging presentation may change.
