Wiseco Pro-Lite Piston Kit 52.00 mm for Suzuki RM85 2002–2023 806M05200

Wiseco Pro-Lite Piston Kit 52.00 mm for Suzuki RM85 2002–2023 806M05200

Regular price £130.22 GBP
Regular price Sale price £130.22 GBP
Sale Sold out
Taxes included.

Wiseco 806M05200 is a piston kit for a 52.00 mm bore.

Wiseco catalogue applications

Make Model Years
Suzuki RM85 2002–2023

Specifications

  • Manufacturer part number: 806M05200
  • Product Series: 2 Stroke Pro-Lite Series
  • Bore Diameter: 52.00 MM
  • Piston Diameter: 51.95 MM
  • Piston Oversize: 4.00 MM
  • Piston Material: 4032
  • Skirt Coating: Yes

Included components

Ring Set #2047CS, Piston pin #S288, Circlip #CW14.

Cylinder preparation

Wiseco specifies: Bore / Replate.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Application notes

  • Suzuki RM85 2002–2023: Provide crankcase clearance.

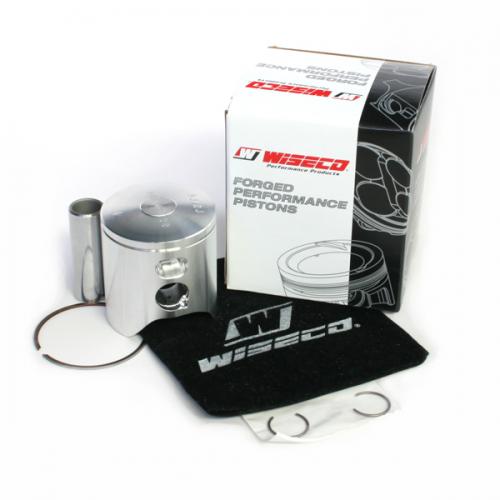

Manufacturer photograph for this reference. Packaging presentation may change.
