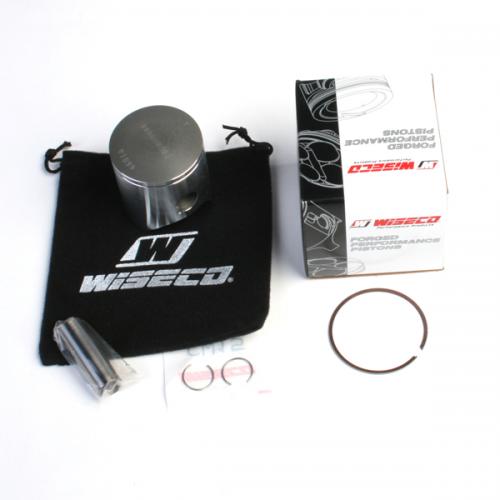

Wiseco GP Series Piston Kit 58.00 mm for Kawasaki KX125 2001–2008 788M05800

Wiseco 788M05800 is a piston kit for a 58.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 788M05800
• Product Series: 2 Stroke GP Series
• Bore Diameter: 58.00 MM
• Piston Diameter: 57.95 MM
• Piston Oversize: 4.00 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2284CS, Piston pin #S632, Circlip #CW15.

Cylinder preparation

Wiseco specifies: Bore / Replate.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
