Wiseco Pro-Lite Piston Kit 64.00 mm for KTM 200 EXC 1998–2016 770M06400

Wiseco 770M06400 is a piston kit for a 64.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 770M06400
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 64.00 MM
• Piston Diameter: 63.95 MM
• Piston Oversize: STD
• Piston Material: 4032
• Skirt Coating: Yes

Included components

Ring Set #2520CD, Piston pin #S486, Circlip #CW16.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

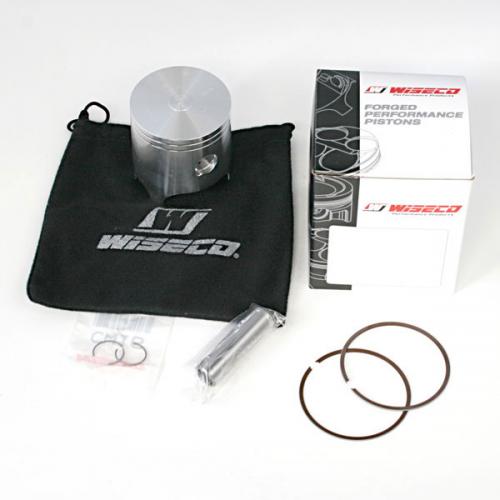

Manufacturer photograph for this reference. Packaging presentation may change.
