Wiseco Pro-Lite Piston Kit 41.00 mm for Beta Cobra, Cobra Action with Reed Moto 1997–1999 698M04100

Wiseco 698M04100 is a piston kit for a 41.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 698M04100
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 41.00 MM
• Piston Diameter: 40.96 MM
• Piston Oversize: 2.00 MM
• Piston Material: 4032
• Skirt Coating: No

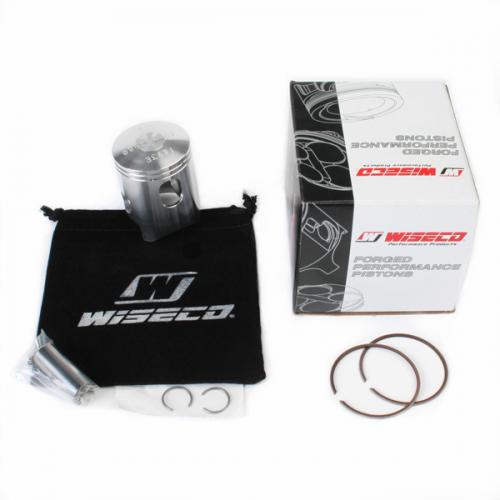

Included components

Ring Set #1614CD, Piston pin #S563, Circlip #CW12.

Cylinder preparation

Wiseco specifies: Bore / Replate.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Application notes

• Beta Cobra, Cobra Action with Reed Moto 1997–1999: Morini engine Will not fit King.
• Beta Cobra, Cobra Action with Reed Moto 1997–1999: Cobra Model Chrome Bore - Oversize applications need a cylinder sleeve or renewed plating.
