Wiseco Forged Piston Kit 56.75 mm for Yamaha TZR125 1987–1992 679M05675

Wiseco Forged Piston Kit 56.75 mm for Yamaha TZR125 1987–1992 679M05675

£136.61 GBP
£136.61 GBP
Sale Sold out
Taxes included.

Wiseco 679M05675 is a piston kit for a 56.75 mm bore.

Wiseco catalogue applications

Make Model Years
Yamaha TZR125 1987–1992
Yamaha DT R125 1988–1996
Yamaha DT R125E 1990–1996
Yamaha TDR125 1990–1992
Yamaha TDR240 1988–1992
Yamaha DTR125 1988–1996
Yamaha DTR125 E 1990–1996

Specifications

  • Manufacturer part number: 679M05675
  • Product Series: 2 Stroke Forged Series
  • Bore Diameter: 56.75 MM
  • Piston Diameter: 56.70 MM
  • Piston Oversize: 0.75 MM
  • Piston Material: 4032
  • Skirt Coating: No

Included components

Ring Set #2234CD, Piston pin #S270, Circlip #CW16.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Application notes

  • Yamaha TZR125 1987–1992, Yamaha DT R125 1988–1996, Yamaha DT R125E 1990–1996, Yamaha TDR125 1990–1992, Yamaha TDR240 1988–1992: Includes Reed Cutout on piston.
  • Yamaha TZR125 1987–1992, Yamaha DT R125 1988–1996, Yamaha DT R125E 1990–1996, Yamaha TDR125 1990–1992, Yamaha TDR240 1988–1992: International bore specification. The catalogue excludes US availability.

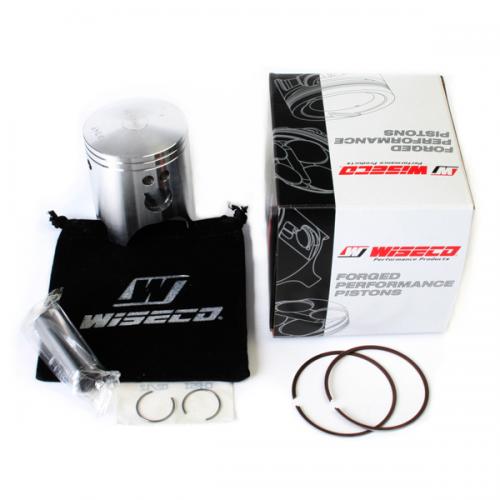

Manufacturer photograph for this reference. Packaging presentation may change.
