Wiseco Pro-Lite Piston Kit 54.50 mm for Suzuki RM125 1989–1999 641M05450

Wiseco 641M05450 is a piston kit for a 54.50 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 641M05450
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 54.50 MM
• Piston Diameter: 54.46 MM
• Piston Oversize: 0.50 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2146CS, Piston pin #S467, Circlip #CW15.

Cylinder preparation

Wiseco specifies: Bore / Replate.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

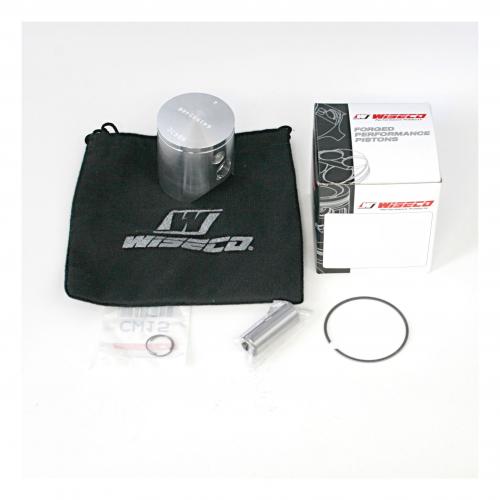

Manufacturer photograph for this reference. Packaging presentation may change.
