Wiseco Pro-Lite Piston Kit 67.75 mm for Suzuki LT250 R Quadracer 1988–1992 571M06775

Wiseco 571M06775 is a piston kit for a 67.75 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 571M06775
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 67.75 MM
• Piston Diameter: 67.69 MM
• Piston Oversize: 0.75 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2668CD, Piston pin #S484, Circlip #CW18.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

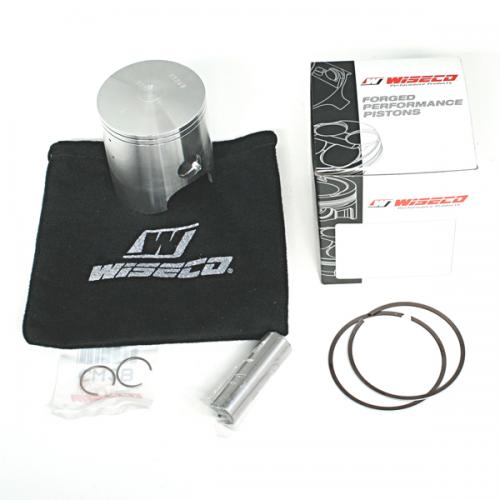

Manufacturer photograph for this reference. Packaging presentation may change.
