Wiseco Pro-Lite Piston Kit 86.00 mm for Suzuki LT500 R Quadracer 1987–1990 561M08600

Wiseco 561M08600 is a piston kit for a 86.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 561M08600
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 86.00 MM
• Piston Diameter: 85.91 MM
• Piston Oversize: STD
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #3386TD, Piston pin #S278, Circlip #CW18.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

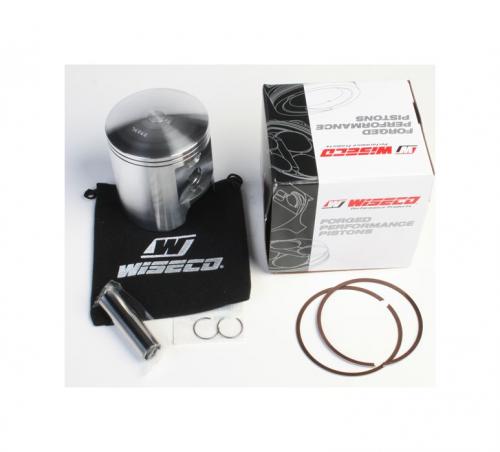

Manufacturer photograph for this reference. Packaging presentation may change.
