Wiseco Forged Piston Kit 67.50 mm for Suzuki RM250 1986 543M06750

Wiseco 543M06750 is a piston kit for a 67.50 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 543M06750
• Product Series: 2 Stroke Forged Series
• Bore Diameter: 67.50 MM
• Piston Diameter: 67.44 MM
• Piston Oversize: 0.50 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2658CS, Piston pin #S524, Circlip #CW18.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

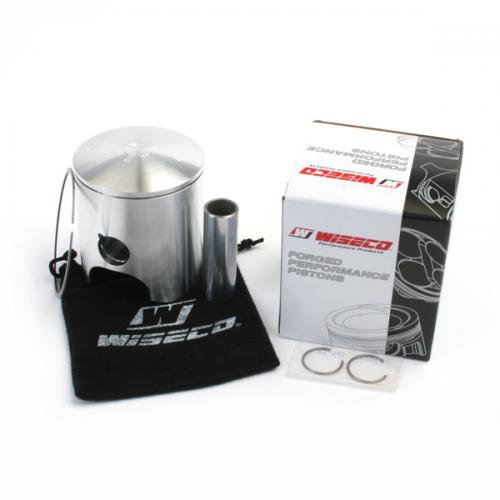

Manufacturer photograph for this reference. Packaging presentation may change.
