Wiseco Pro-Lite Piston Kit 72.00 mm for Suzuki LT250 R Quadracer 1985–1986 534M07200

Wiseco 534M07200 is a piston kit for a 72.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 534M07200
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 72.00 MM
• Piston Diameter: 71.92 MM
• Piston Oversize: 2.00 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2835CD, Piston pin #S513, Circlip #CW18.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Application notes

• Suzuki LT250 R Quadracer 1985–1986: Retain the original thrust washers.

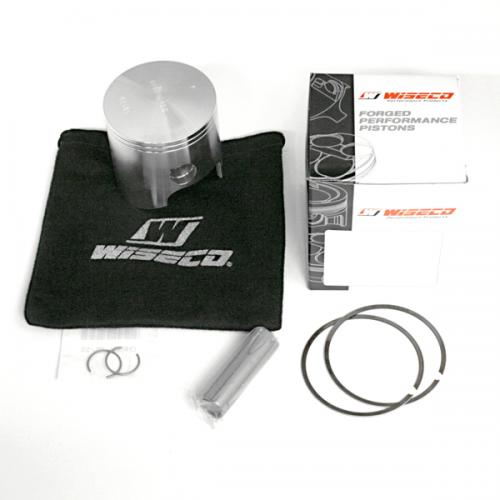

Manufacturer photograph for this reference. Packaging presentation may change.
