Wiseco Forged Piston Kit 56.00 mm for Suzuki RM125 1981–1984 511M05600

Wiseco 511M05600 is a piston kit for a 56.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 511M05600
• Product Series: 2 Stroke Forged Series
• Bore Diameter: 56.00 MM
• Piston Diameter: 55.95 MM
• Piston Oversize: 2.00 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2205CD, Piston pin #S485, Circlip #CW14.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

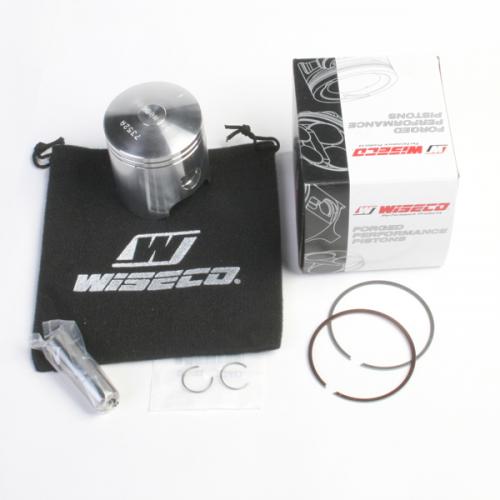

Manufacturer photograph for this reference. Packaging presentation may change.
