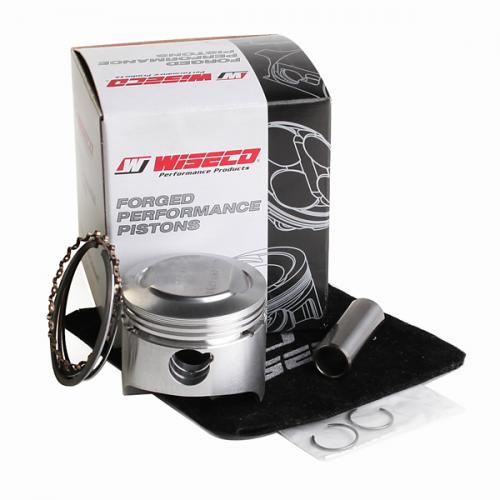

Wiseco Forged Piston Kit 47.50 mm 10.5:1 CR for Honda XR70 1997–2003 4880M04750

Wiseco 4880M04750 is a piston kit for a 47.50 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4880M04750
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 47.50 MM
• Piston Diameter: 47.47 MM
• Piston Oversize: 0.50 MM
• Piston Material: 4032
• Skirt Coating: No
• Compression Ratio Actual: 10.5:1

Included components

Ring Set #1870XE, Piston pin #S592, Circlip #CW13.

Cylinder preparation

Wiseco specifies: Bore and Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
