Wiseco Forged Piston Kit 56.50 mm for Kawasaki KX125 1982–1985 486M05650

Wiseco 486M05650 is a piston kit for a 56.50 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 486M05650
• Product Series: 2 Stroke Forged Series
• Bore Diameter: 56.50 MM
• Piston Diameter: 56.45 MM
• Piston Oversize: 0.50 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2224CD, Piston pin #S270, Circlip #CW16.

Cylinder preparation

Wiseco specifies: Bore / Replate.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

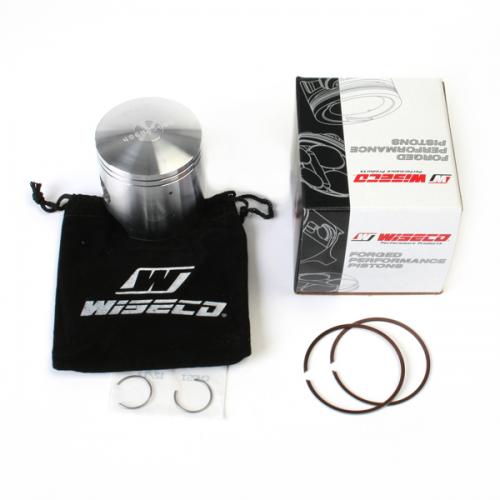

Manufacturer photograph for this reference. Packaging presentation may change.
