Wiseco Forged Piston Kit 61.00 mm 11:1 CR for Kawasaki KLX125 2002–2006 4815M06100

Wiseco 4815M06100 is a piston kit for a 61.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4815M06100
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 61.00 MM
• Piston Diameter: 60.95 MM
• Piston Oversize: 4.00 MM
• Piston Material: 4032
• Skirt Coating: No
• Compression Ratio Actual: 11:1

Included components

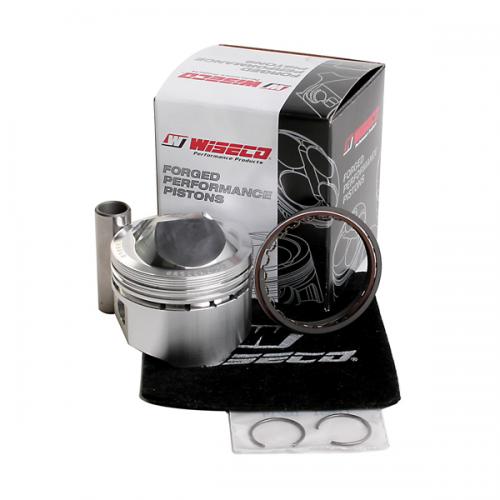

Ring Set #2402XA, Piston pin #S593, Circlip #CW14.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
