Wiseco Forged Piston Kit 82.00 mm 11:1 CR for Arctic Cat 650 V-Twin 2004–2007 4782M08200

Wiseco Forged Piston Kit 82.00 mm 11:1 CR for Arctic Cat 650 V-Twin 2004–2007 4782M08200

£143.57 GBP
£143.57 GBP
Sale Sold out
Taxes included.

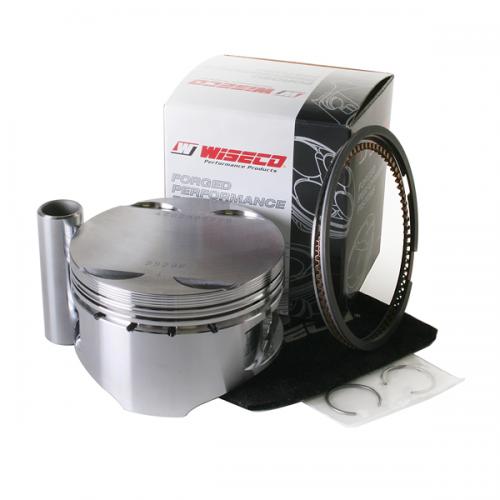

Wiseco 4782M08200 is a piston kit for a 82.00 mm bore.

Wiseco catalogue applications

Make Model Years
Arctic Cat 650 V-Twin 2004–2007
Kawasaki KVF650 Brute Force 2005–2010
Kawasaki KVF650 Prairie 2002–2003

Specifications

  • Manufacturer part number: 4782M08200
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 82.00 MM
  • Piston Diameter: 81.95 MM
  • Piston Oversize: 2.00 MM
  • Piston Material: 2618
  • Skirt Coating: No
  • Compression Ratio Actual: 11:1

Included components

Ring Set #3228XC, Piston pin #S520, Circlip #CW20.

Cylinder preparation

Wiseco specifies: Bore/Replate/ Sleeve.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Manufacturer photograph for this reference. Packaging presentation may change.
