Wiseco Forged Piston Kit 58.00 mm 12:1 CR for Honda XR100 1985–2003 4773M05800

Wiseco 4773M05800 is a piston kit for a 58.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4773M05800
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 58.00 MM
• Piston Oversize: 5.00 MM
• Piston Material: 4032
• Skirt Coating: No
• Compression Ratio Actual: 12:1

Included components

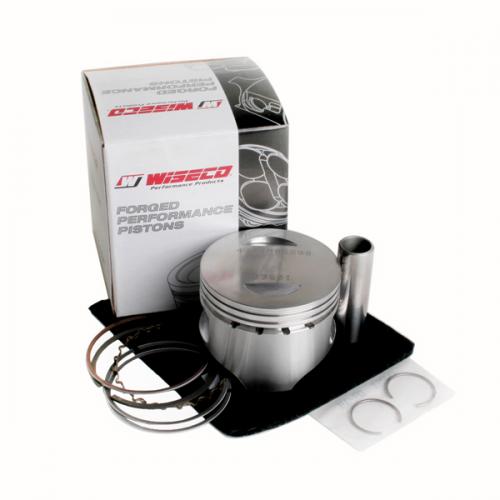

Ring Set #2283XE, Piston pin #S485, Circlip #CW14.

Cylinder preparation

Wiseco specifies: Resleeve.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
