Wiseco Forged Piston Kit 67.00 mm for Yamaha DT175 1978–1979 471M06700

Wiseco 471M06700 is a piston kit for a 67.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 471M06700
• Product Series: 2 Stroke Forged Series
• Bore Diameter: 67.00 MM
• Piston Diameter: 66.95 MM
• Piston Oversize: 1.00 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2638CD, Piston pin #S259, Circlip #CW16.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

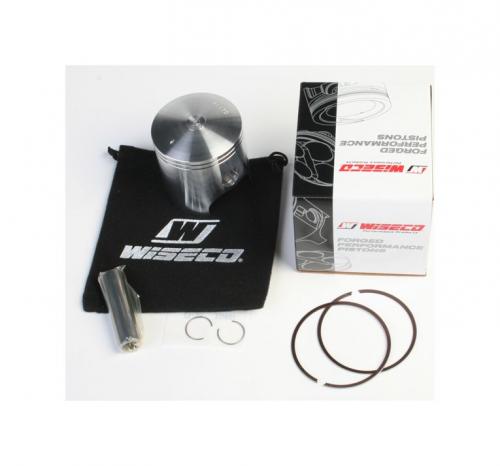

Manufacturer photograph for this reference. Packaging presentation may change.
