Wiseco Forged Piston Kit 66.50 mm for Yamaha DT175 1978–1979 471M06650
Wiseco Forged Piston Kit 66.50 mm for Yamaha DT175 1978–1979 471M06650
Regular price
£120.79 GBP
Regular price
Sale price
£120.79 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Wiseco 471M06650 is a piston kit for a 66.50 mm bore.
Wiseco catalogue applications
| Make | Model | Years |
|---|---|---|
| Yamaha | DT175 | 1978–1979 |
| Yamaha | MX175 | 1979–1981 |
| Yamaha | YT175 | 1982–1984 |
Specifications
- Manufacturer part number: 471M06650
- Product Series: 2 Stroke Forged Series
- Bore Diameter: 66.50 MM
- Piston Diameter: 66.45 MM
- Piston Oversize: 0.50 MM
- Piston Material: 4032
- Skirt Coating: No
Included components
Ring Set #2618CD, Piston pin #S259, Circlip #CW16.
Cylinder preparation
Wiseco specifies: Bore & Hone.
Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

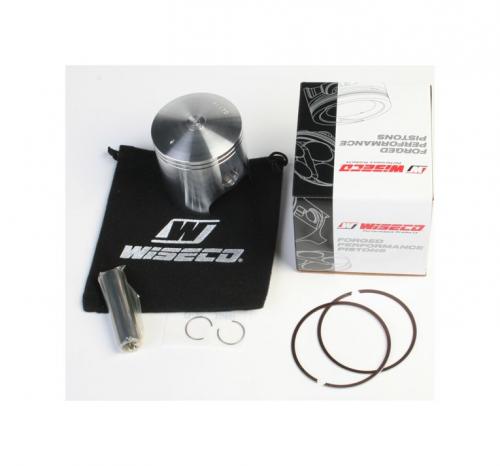

Manufacturer photograph for this reference. Packaging presentation may change.
