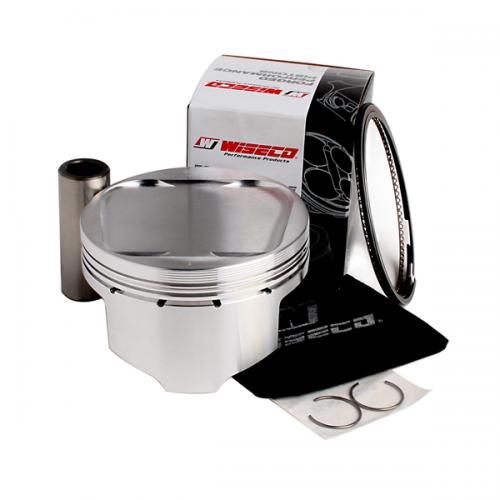

Wiseco Forged Piston Kit 102.40 mm 10:1 CR for Honda XR650 R 2000–2007 4715M10240

Wiseco 4715M10240 is a piston kit for a 102.40 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4715M10240
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 102.40 MM
• Piston Diameter: 102.31 MM
• Piston Oversize: 2.40 MM
• Piston Material: 2618
• Skirt Coating: No
• Compression Ratio Actual: 10:1

Included components

Ring Set #4032GFX, Piston pin #S626, Circlip #CW23.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
